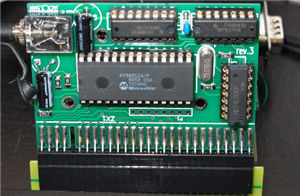

Simple AY sound card
BOM list:
1 x AY-3-8912 (U1)
1 x 3.57954 MHz crystal (X1)
1 x 3,5mm jack socket PJ324 (J1)
1 x 74LS138, 74LS00, 74LS74 (U2, U3, U4)
2 x 1k resistor (R8, R9)
2 x 1k6 resistor (R6, R7)
5 x 470R resistor (R1, R2, R3, R4, R5)
2 x 100nF ceramic capacitor (C1, C2)
2 x 4,7uF electrolytic capacitor (C6, C7)
Simple AY sound card
