SimpleStereo v4
Required board thickness is 1mm or close to it!
+ up to 4 Pokey chips
+ up to 2 SID chips
+ up to 2 AY/Yamaha PSG chips
+ up to 32 channel wavetable with 8Mbytes of sample RAM
+ 32/16 channel custom FM synthetizer
+ USB/PS2/Atari IKBD keyboard interface or joystick interface
+ SIO2USB (like memory stick, etc)
all upgradable with USB or Atari core upgrading software
video presentation:
https://www.youtube.com/watch?v=s3oe5xa_Tjs
https://www.youtube.com/watch?v=UXFByAg1Oqk
Schematic and Layout
SimpleStereoV4.PDF
Aug 24,2024
1,547 views
SimpleStereo v4

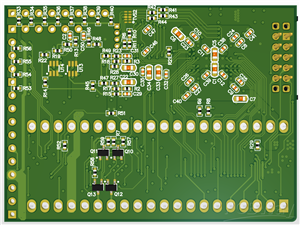

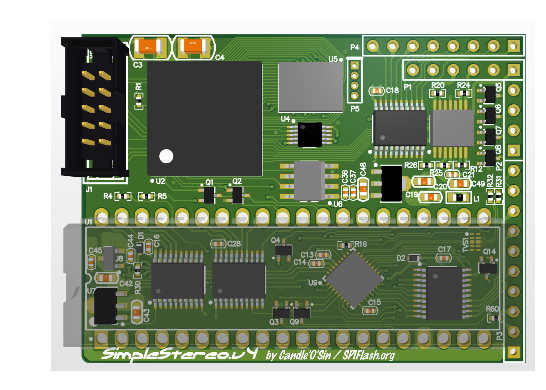

SimpleStereo v4 integrates up to 4 pokey chips, 2 sid chips. AY/Yamaha PSG, custom FM synthethiser and 32 channel wave-table with 8mb of ram
