Description

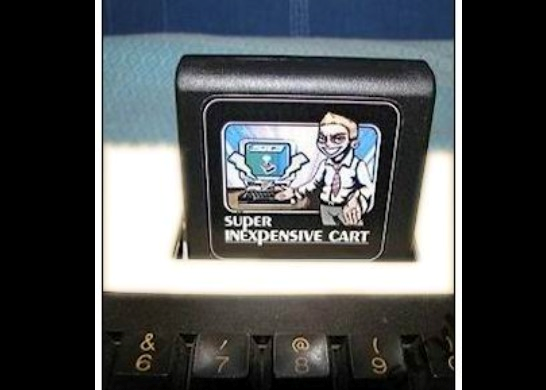

Sic! v1.0 cartridge for 8bit atari xl/xe computers

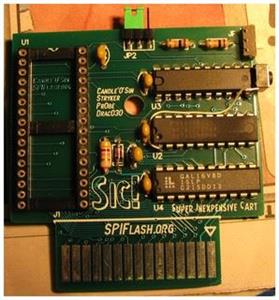

SIC!, wchich stands for Super Inexpensive Cart is intelligent cartridge designed to use with Atari 8-bit computers. It works with flash-memory chips. It has both standard cartridge and memory programmer functions. It may be used as multicartridge, where you can place your several favorite games, demos etc. You can also program your SIC! for using as SpartaDOS X cartridge, or use SIC! as programmer for ATARI ST/E TOS-chips. SIC!-cart supports 1- 2- amd 4-Mbit memory chips (respectively: 128, 256 or 512 kilobyte) "5v" DIP-type. The memory in SIC! is banked. The banks can be selected with special register. SIC!'s possibilities can be tested in newest version of Altirra emulator.

Download Gerbers

Jul 05,2025

232 views

Sic! v1.0 cartridge for 8bit atari xl/xe computers

Sic! v1.0 Atari XL/XE cartridge more at http://sic.pigwa.net/english.html

232

Published: Jul 05,2025
