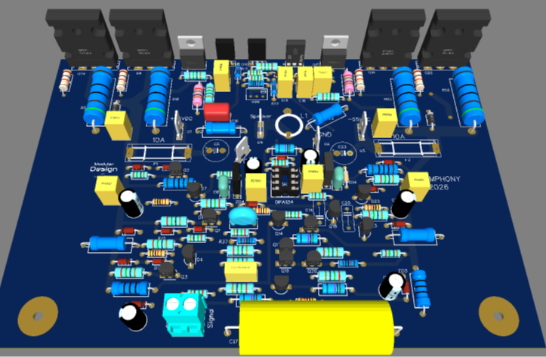

SYMPHONY audio power amplifier dual opamp
For dual opamp use unity gain stable opamps only.
178.05mm X 120.65mm
quasi complementary output stages , very good output stage for low impedance , lower impedance than triple EF
SYMPHONY audio power amplifier dual opamp
