SX1255 RPI 3-4 RF Shield

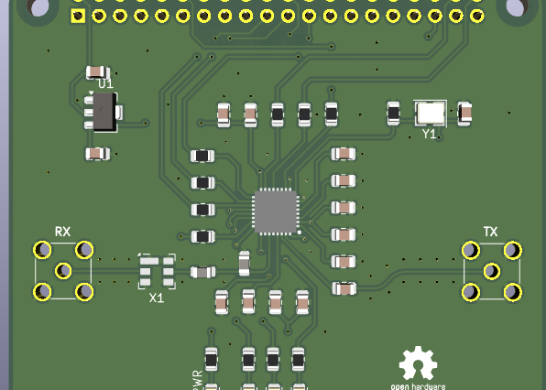

This is Open HW a minimal cost Raspberry Pi 3-4 hotspot with SX1255 RF chip, this should support all digital modes like (M17, DMR, P25, YSF...and Tetra DMO).
Schematic and Layout
https://github.com/labdvm/SX1255-RPI3-4-HAT
Apr 28,2025
235 views
SX1255 RPI 3-4 RF Shield
A minimal cost Raspberry Pi 3-4 hotspot. More info - https://github.com/labdvm/SX1255-RPI3-4-HAT
235
0
0
Published: Apr 28,2025
Standard PCB
Download Gerber file 3
Centroid file
PCBWay Donate 10% cost To Author
