Components

	SOJ-26 DRAM	x 1
	DIP20 Socket (Narrow)	x 1

Tools, APP Software Used etc.

KiCAD

Kicad

Description

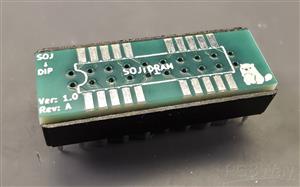

SOJ-26 to Narrow DIP-20 DRAM Adapter

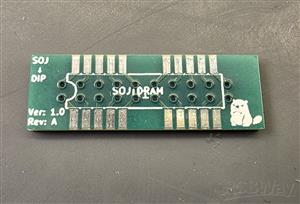

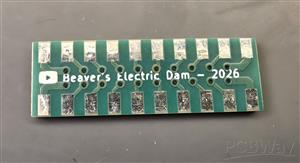

This is my SOJ-26 to DIP-20 PCB for converting SOJ DRAM to DIP

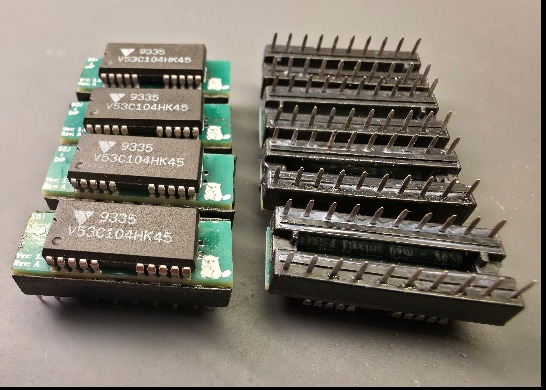

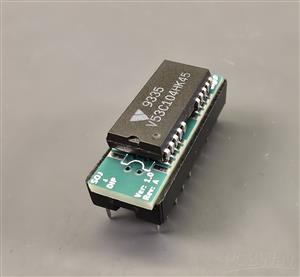

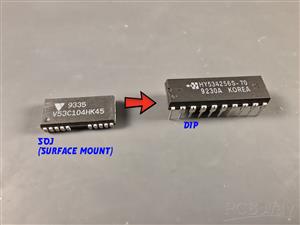

With this adapter, you can convert DRAM from SOJ-26 to DIP-20 without making them any wider than the socket itself.

Usefull, if your DRAM DIP sockets has no space inbetween

For more details on this PCB, see my YouTube video about it:

** Link will be added when video goes live **

Download Gerbers

Oct 28,2026

12 views

SOJ-26 to Narrow DIP-20 DRAM Adapter

This is a SOJ-26 to Narrow DIP-20 DRAM Adapter. With this adapter, you can convert DRAM from SOJ-26 to DIP-20 without making them wider
