47uF 0805 SMD Capacitor (16V or greater)Generic
|
x 6 | |
|
|
KM44C16100BK-5Samsung
|
x 3 |
|
KiCADKicad
|

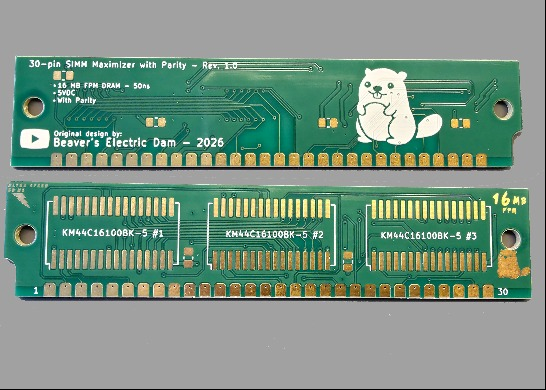

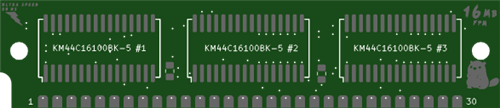

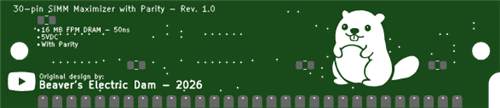

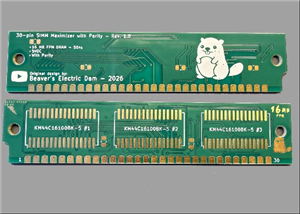

16MB 30 PIN RAM with Parity
16MB 30-PIN RAM with Parity
(3 16MB chips with 4bit's each)
This RAM PCB is for creating high capacity 16MB SIMM RAM's. These are designed for use in old 386 and 486 computer motherboards that need 5V 30-PIN SIMM RAM. They are compatible with both parity and non-parity configurations, and have a speed rating of 50ns!.
They might also work for you in other systems that uses 30PIN SIMM RAM (Like Macintosh and other computers from the same era (1980's-90's) but I have not tested that. See my video's down below for more information)
Before you order these PCB's, make sure to check out my videos, where I tell you everything you need to know to about these PCB's:
>>>>>> Upcomming YT video goes here <<<<<<<<
You can also check out the video that led me to do this PCB design in the first place:
16MB 30 PIN RAM with Parity
