Mini DIN 10 |
x 1 |

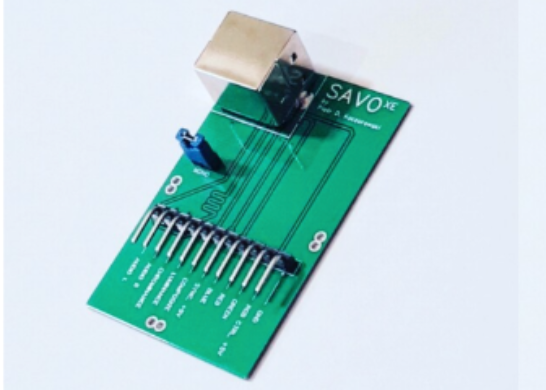

SAVO XE for Atari XE
SAVO is the connector board with the audio/video output of the Sega Saturn, which is mounted instead of the RF modulator. SAVO boards prevent the computer case from being drilled open or cut when new audio/video signals are added to the Atari microcomputer. SAVO is compatible with any Sega Saturn cable by using the Sega Saturn mini DIN10 jack.
SAVO is a simple board with no additional electronics and does not inherently generate or amplify audio or video signals.
The main purpose of SAVO is the ability to install AV extensions without drilling the Atari case and making homemade cables.
The project page: https://github.com/peterkaczorowski/SAVO
SAVO XE for Atari XE
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
