Mini Din 10 |
x 1 |

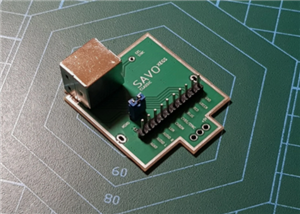

SAVO 1200XL for Atari 1200XL
SAVO is the connector board with the audio/video output of the Sega Saturn, which is mounted instead of the RF modulator. SAVO boards prevent the computer case from being drilled open or cut when new audio/video signals are added to the Atari microcomputer. SAVO is compatible with any Sega Saturn cable by using the Sega Saturn mini DIN10 jack.
SAVO is a simple board with no additional electronics and does not inherently generate or amplify audio or video signals.
The main purpose of SAVO is the ability to install AV extensions without drilling the Atari case and making homemade cables.
The project page: https://github.com/peterkaczorowski/SAVO
SAVO 1200XL for Atari 1200XL
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(1)
- Likes(0)
More by Peter Kaczorowski
-
SAVO XEGS for Atari XEGS
SAVO is the connector board with the audio/video output of the Sega Saturn, which is mounted instead...
-
SAVO 1200XL for Atari 1200XL
SAVO is the connector board with the audio/video output of the Sega Saturn, which is mounted instead...
-

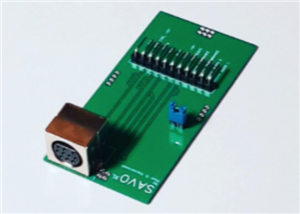

SAVO XL for Atari 600XL, Atari 800XL
SAVO is the connector board with the audio/video output of the Sega Saturn, which is mounted instead...
-

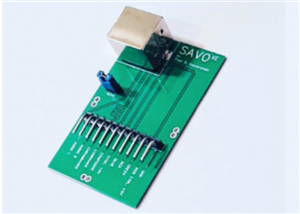

SAVO XE for Atari XE
