Project Title

Compact RP2040 Development Board

What’s this project about?

This project is a compact development board based on the powerful Raspberry Pi RP2040 microcontroller. The goal was to design a small, affordable board that provides easy access to the RP2040’s GPIO pins while keeping the circuit simple and reliable for prototyping and embedded projects.

The board can be used for:

Embedded system development

Robotics projects

IoT devices

Sensor interfacing

Learning microcontroller programming

Why did I make this project?

I wanted a custom RP2040 board optimized for breadboard prototyping and small embedded applications. While development boards like the Raspberry Pi Pico already exist, designing a custom board allows:

Learning PCB design and microcontroller hardware

Custom pin layout

Compact form factor

Integration into other electronics projects

This project was also a good exercise in high-speed USB routing, power regulation, and microcontroller PCB design.

How does it work?

The board is built around the dual-core ARM Cortex-M0+ RP2040 microcontroller.

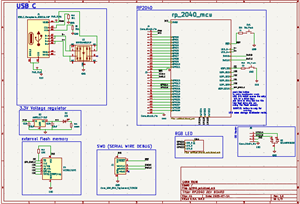

Main components

RP2040 microcontroller

USB connector for programming and power

3.3V voltage regulator

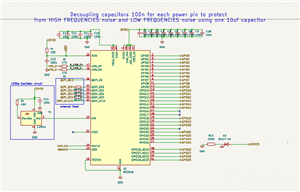

External crystal oscillator for stable clock

Boot and reset buttons

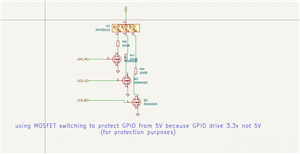

GPIO headers

Operation

The board is powered through the USB connector.

The voltage regulator provides a stable 3.3V supply to the microcontroller.

The RP2040 runs firmware written in C/C++ or MicroPython.

Users can connect sensors, LEDs, motors, or other modules through the GPIO pins.

Firmware can be uploaded via USB using the RP2040 bootloader.

Features

RP2040 dual-core microcontroller

USB programming interface

Breadboard-friendly layout

Multiple GPIO pins exposed

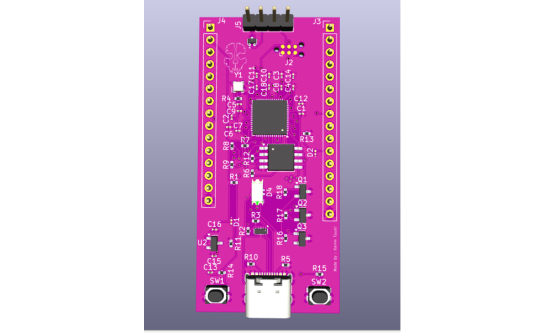

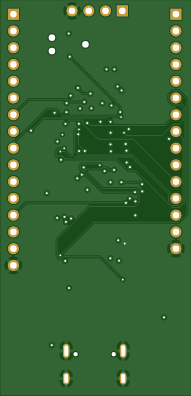

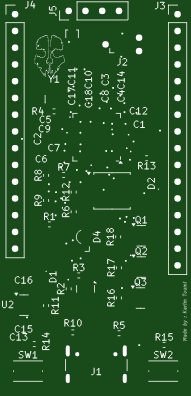

Compact PCB design

Compatible with MicroPython and C/C++ SDK
