Pocket Tester

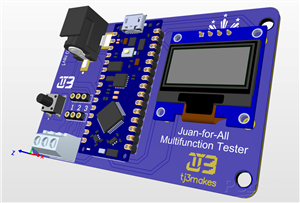

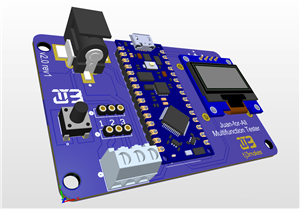

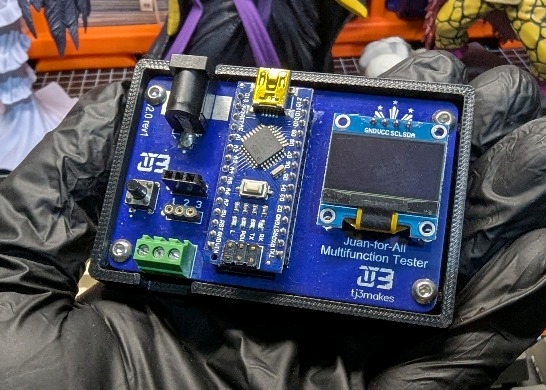

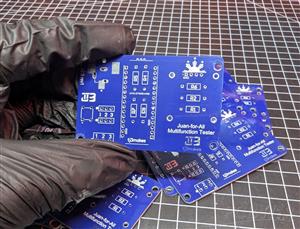

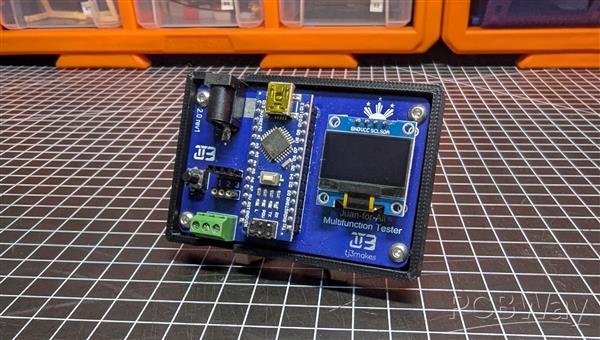

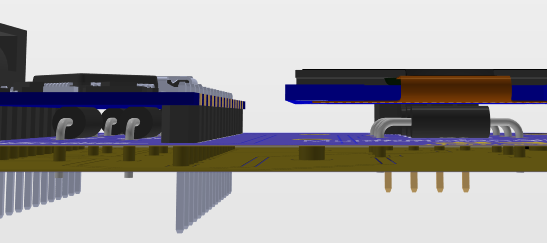

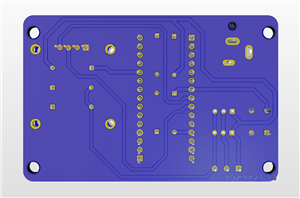

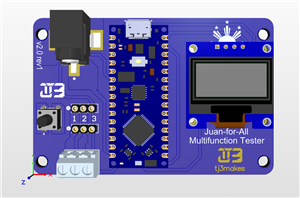

This is a compact, lightweight component tester powered by an Arduino Nano, designed for quick and practical electronics diagnostics. It can run from either USB or a DC jack, making it flexible for both bench use and field work.

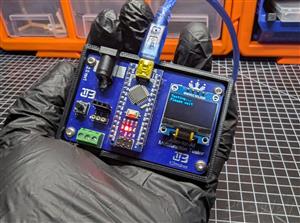

The device identifies and tests common components such as resistors, LEDs, transistors, and capacitors, with results displayed clearly on a small OLED screen. A single-button interface keeps operation simple while reducing cost and complexity, making the build affordable and easy to replicate.
It’s an ideal tool for students, hobbyists, and technicians who need a portable, low-cost way to verify electronic parts on the go.
Pocket Tester
