PixEagle flight controller

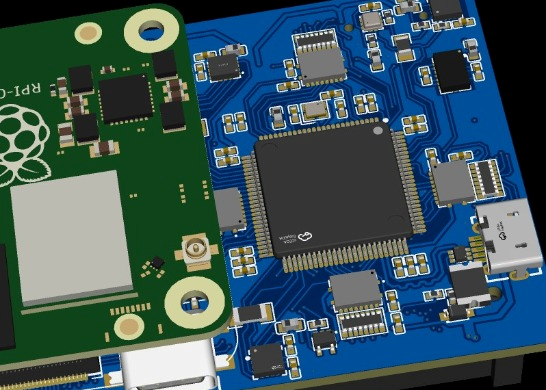

The Pix-Eagle is a high-performance flight controller designed for AI-powered drones, combining the reliability of PX4 firmware with the processing power of a Raspberry Pi 4 Compute Module (4GB RAM, 32GB eMMC). Built around the STM32H743VIT6, this system ensures real-time stabilization while enabling advanced AI tasks like autonomous navigation, obstacle avoidance, and precision surveying.

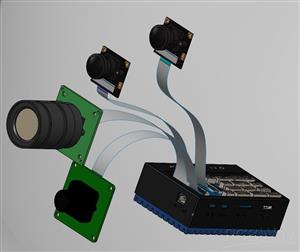

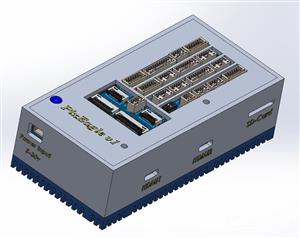

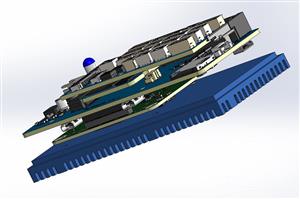

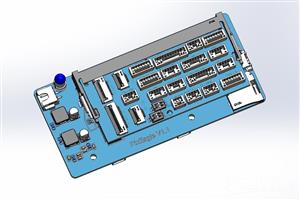

Powerful Hardware for Advanced Applications, With 5 high-quality camera inputs + 1 analog camera port, the Pix-Eagle supports AI vision processing, object detection, and collision avoidance. Its triple-board stackable design includes:

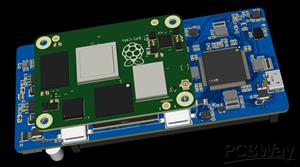

Raspberry Pi CM4 Companion Computer (Ubuntu-compatible for AI applications)

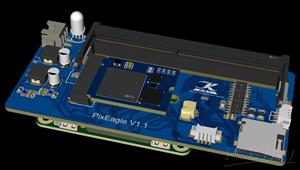

Expandable DDR4 Connection Board (Configurable for industrial/military use)
Multiple Interfaces: Serial, I2C, SPI, CAN Bus for sensors (GPS, telemetry, TOF 360, speed/distance sensors)
Dual HDMI Ports – Easy local debugging
3x USB Ports, 4x FFC Camera Connectors – Supports multi-camera setups
Upgradable to CM5 – Future-proof for evolving AI demands
