PULSE GENERATOR

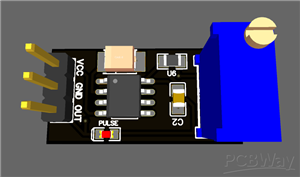

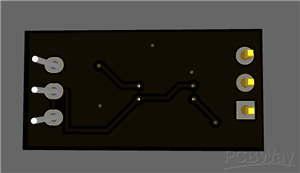

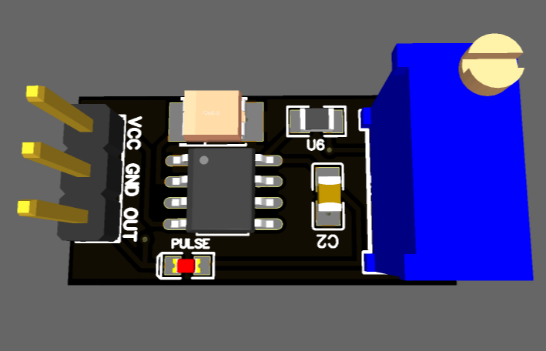

This NE555 Pulse Generator is a compact and reliable PCB designed to generate adjustable square wave signals for electronics projects. It features configurable frequency and duty cycle, making it ideal for PWM control, motor speed regulation, LED dimming, signal testing, and embedded applications. The project includes Gerber files, schematic, BOM, and Pick & Place data for easy PCB fabrication and assembly. Suitable for Arduino, ESP32, STM32, robotics, IoT, DIY electronics, and educational laboratory experiments.
PULSE GENERATOR
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
