LED CHASER

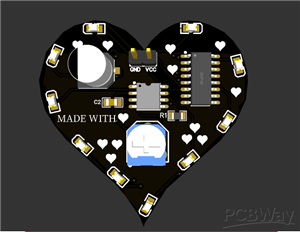

Introducing a beautifully handcrafted LED Heart Chaser — a glowing heart-shaped circuit board designed to bring warmth and charm to any moment. Watch as LEDs light up one by one in a smooth chasing pattern, creating a mesmerizing glow that's perfect for gifting, decorating, or simply expressing love in a unique way.
Built using quality DIP components and a reliable NE555 + CD4017 circuit, this LED Heart Chaser isn't just a decoration — it's a handmade piece of engineering crafted with care and precision. Whether it's for Valentine's Day, an anniversary, a birthday, or just a heartfelt surprise, this glowing heart makes every occasion special.
✨ Features:
Heart-shaped LED chasing effect
Compact, custom-designed PCB
Adjustable speed control (via potentiometer)
Runs on simple 5-12V power supply
Handmade with love — perfect for gifting
A small glow, a big gesture. Give something that truly shines
