DIY ARDUINO

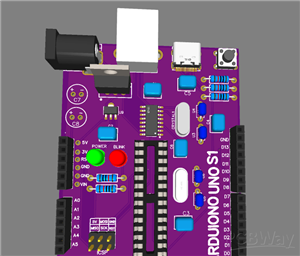

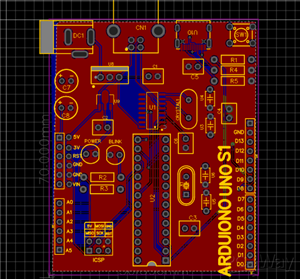

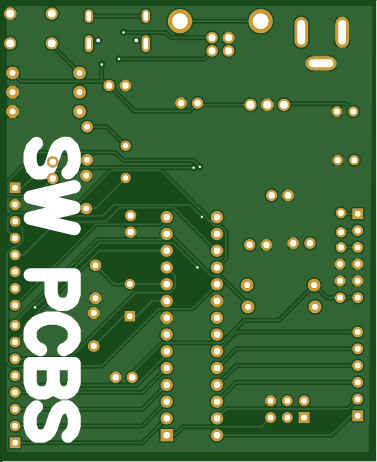

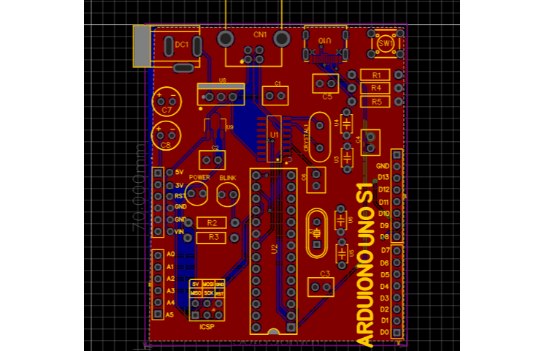

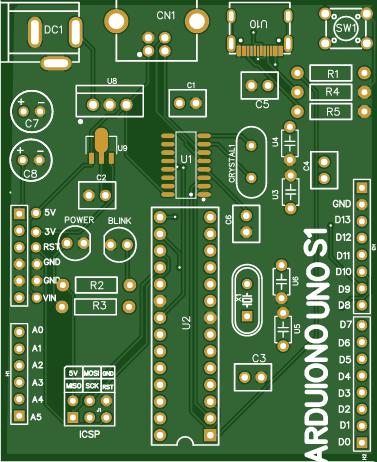

I designed and built my own custom Arduino Uno PCB using DIP components for easy soldering and understanding. It's built around the ATmega328P microcontroller, along with a 16MHz crystal, reset button, and LM7805 for 5V power regulation. Header pins are included for USB-to-Serial code uploading, and all I/O pins follow the standard Arduino pinout — working just like an original Arduino Uno
DIY ARDUINO
