Components

	CH32V003J4M6 WCH	x 1
	WS2812B-2020 Worldsemi	x 3
	TTP223BA6	x 2

Tools, APP Software Used etc.

	MounRiver Studio MounRiver
	WCH-Link
	Soldering iron (generic)

Description

PCBWay11BadgeContest_Falcon

Badge Description:

The PCB badge features a CH32V003J4M6 microcontroller, supported by 3× WS2812B-2020 addressable LEDs for dynamic lighting effects. It includes 2× TTP223-BA6 touch sensors for interactive control. A Micro-USB connector allows for MCU programming, charging. The badge is powered by a CR2032 or LIR2032 battery, with an optional LTC4054ES5-4.2 for charging LIR2032.

LTC4054ES5-4.2#PBF using:

-DON'T USE NON-RECHARGEABLE BATTERIES LIKE CR2032 !!!

- OR DO NOT CONNECT USB IF USING NON-RECHARGEABLE BATTERIES (CR2032 ...)!!!

-OR REMOVE BATTERIES BEFORE CONNECTING THE USB!!!

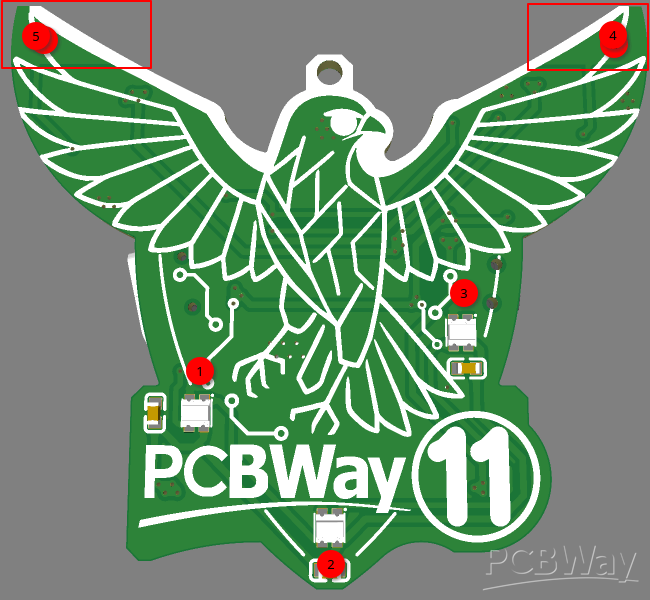

LED1
LED2
LED3
TOUCHPOINT
TOUCHPOINT

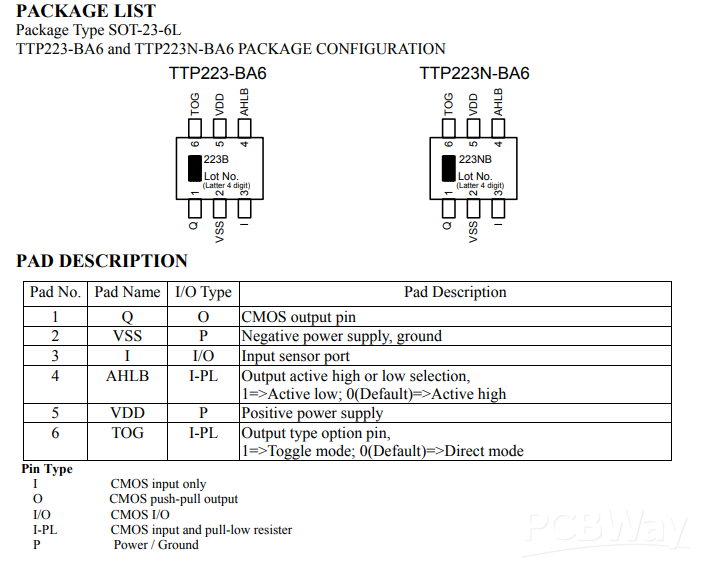

A-AHLB/VCC

B-TOB/VCC

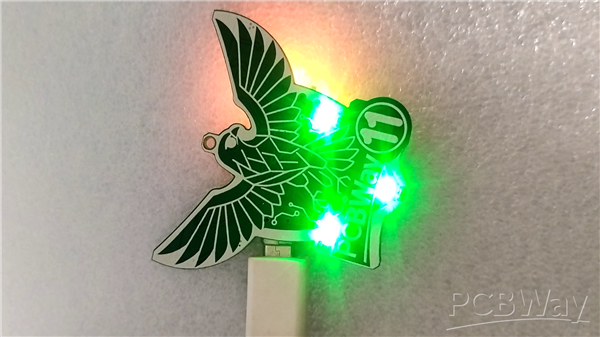

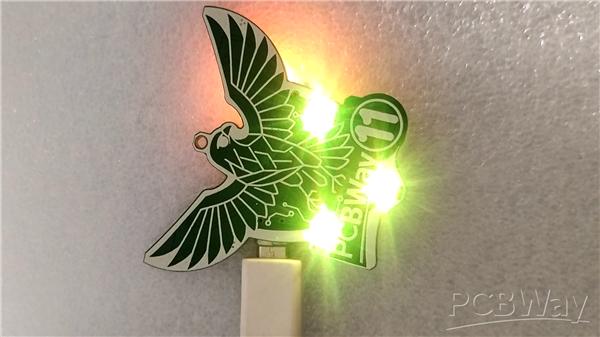

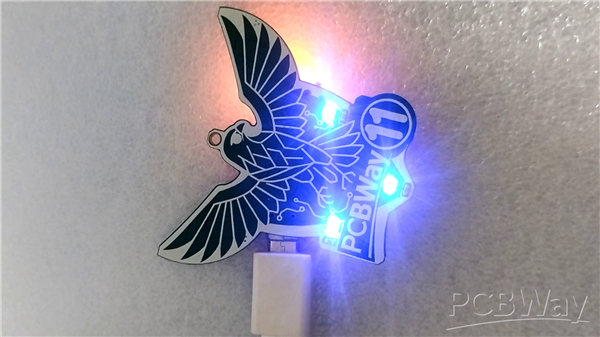

Test:

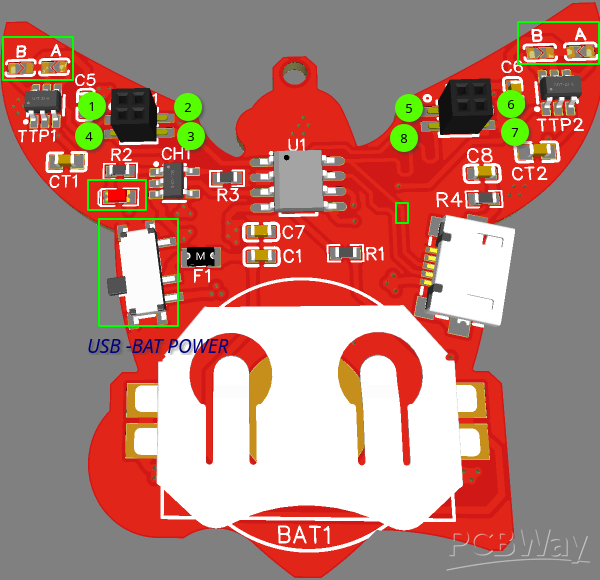

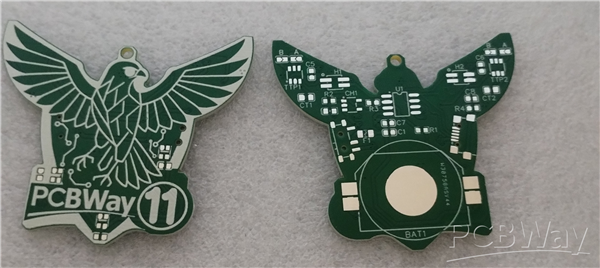

3D:

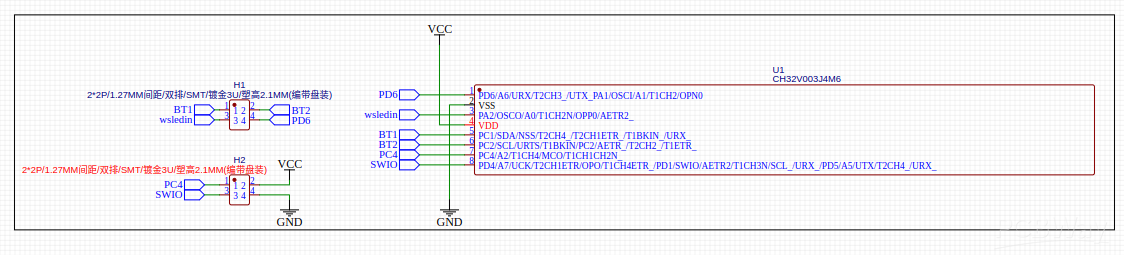

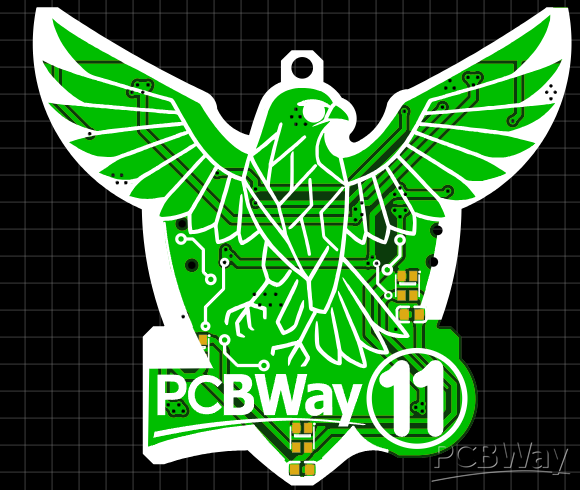

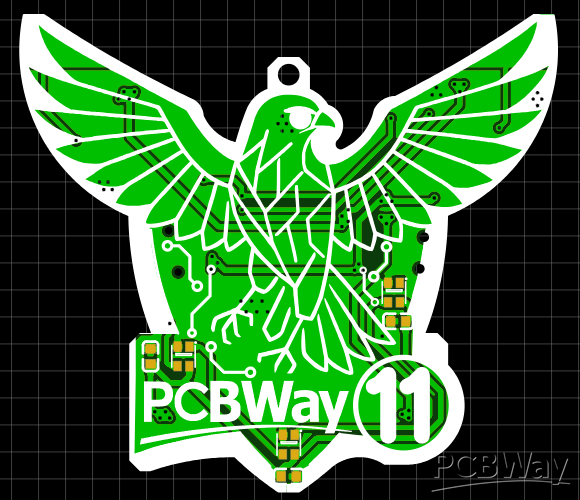

Design:

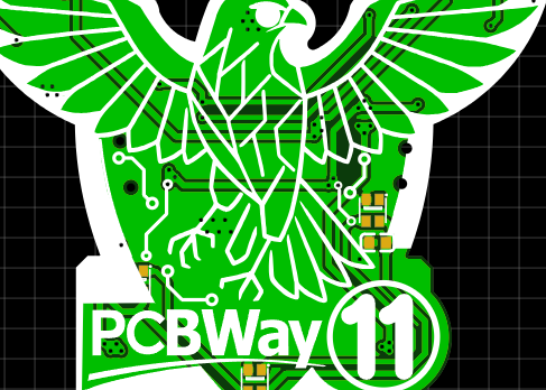

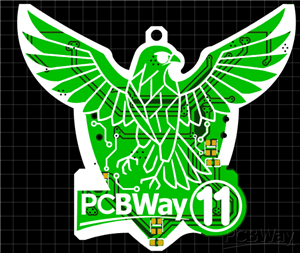

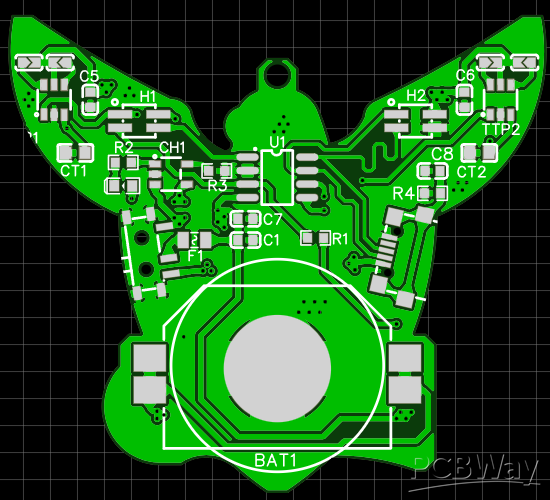

design2:

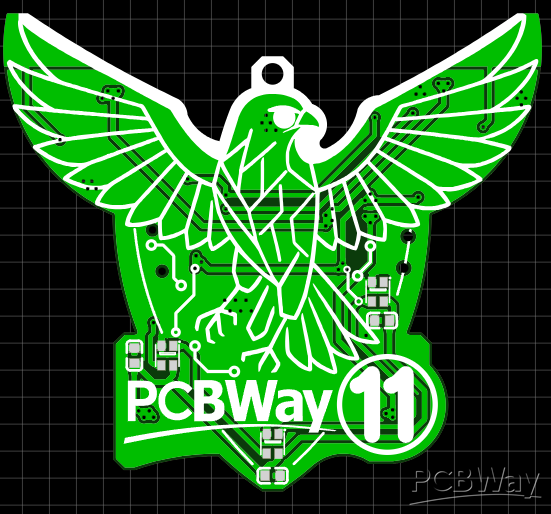

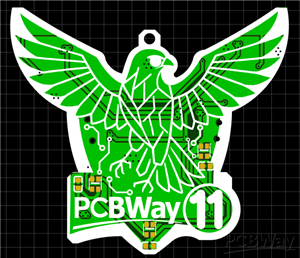

design3:

Code

hex file for test

PCBway_falcon.hex

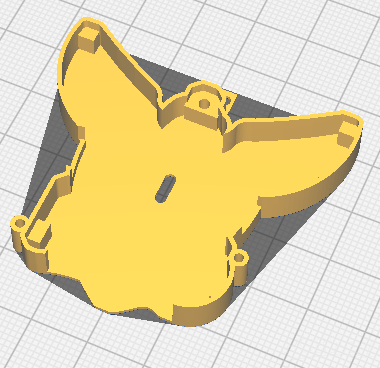

CAD-Custom parts and enclosures

falcon stl file

sokol-Body.stl

Download Gerbers Download BOM(Bill of materials)
