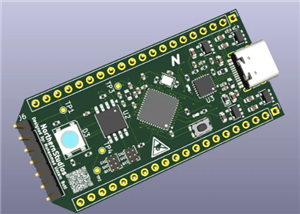

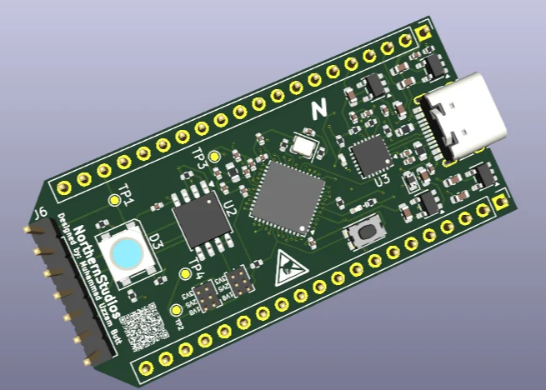

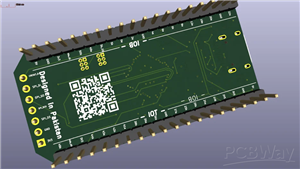

NorthernStudios iCE40-UltraPlus FPGA Dev Board (V2)
NorthernStudios iCE40-UltraPlus FPGA Dev Board (V2) is a small, open-source development board based on the tiny form factor that utilizes Lattice iCE40 UltraPlus (iCE40UP5K) FPGA. This development board is specially built for low power edge computing, TinyML, RISC-V softcores and hardware developments.
The features of this development board include the integrated USB-to-UART bridge, 128M-bit SPI Flash and the multi rail power supply system.
NorthernStudios iCE40-UltraPlus FPGA Dev Board (V2)
