Neo Geo reproduction MV-1C save game and headphone PCB

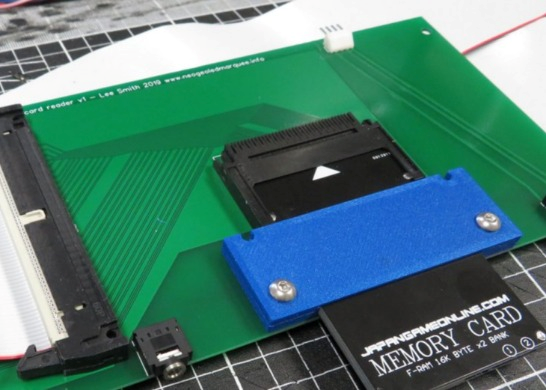

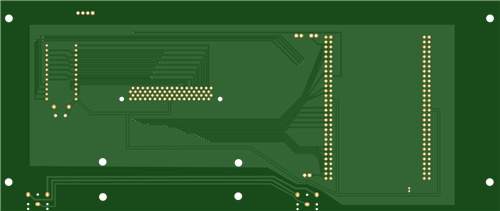

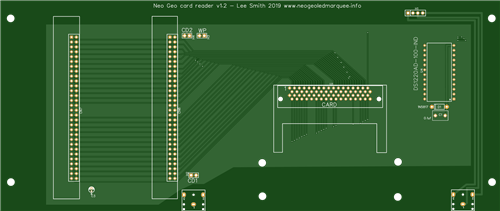

This is my Neo Geo MV-1C PCB, it was copied from an original and I included an option to add the NVRAM module, but never did anything with that.
I was buying the PCMCIA socket from digikey and it's best to get this one unless you can confirm the pinout and foot prints are the same. They are end of life, but currently have 2000 in stock ((21/05/2025)

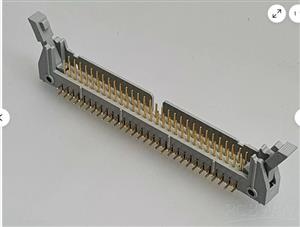

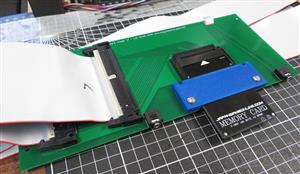

The 60way right angle connectors was also not so easy to find (in the uk) and I would buy from ebay and sometimes aliexpress.
I included the files for the PCMCIA card support to be 3d printed.
