N2 Express mini card connector breakout
2 Layers PCB 90 x 52 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

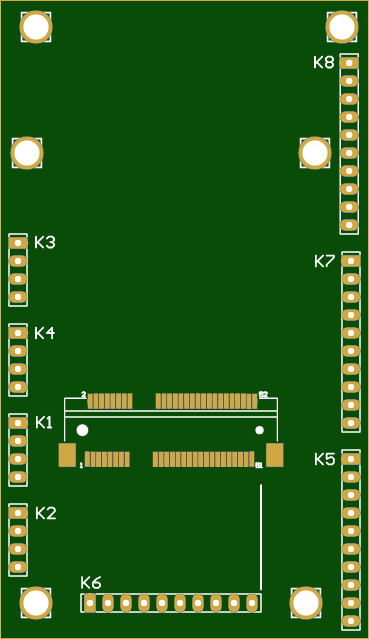

A breakout board to access the signals of an N2 Express mini card connector through a series of terminal block connections.
