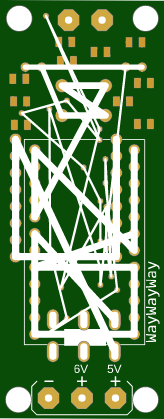

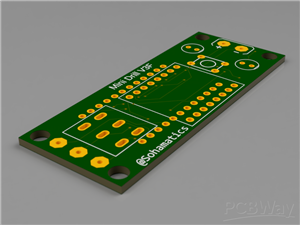

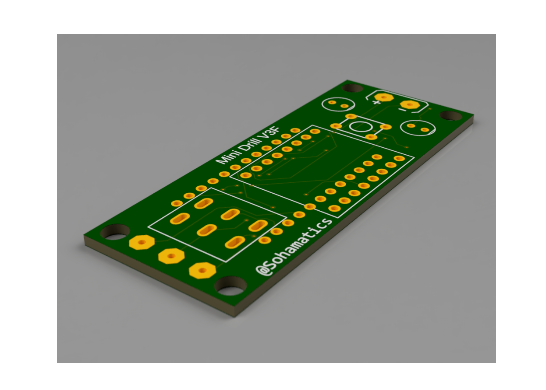

Mini drill PCB_2026-08-28 FINAL

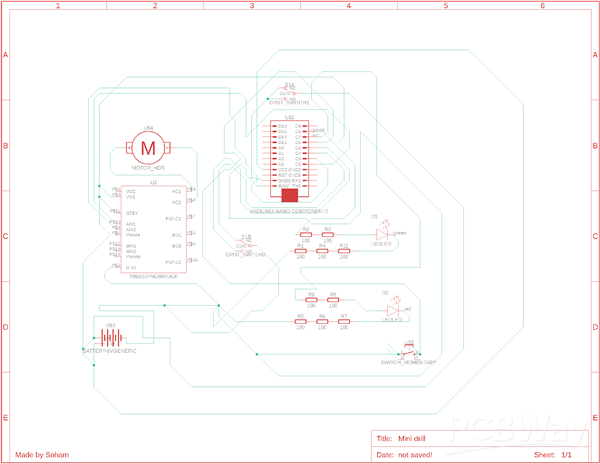

It's an electric screwdriver. I made it because I unscrew things a lot and it makes my hands hurt. It uses a DRV module to spin the geared motor both directions to screw and unscrew. It requires a set of screw heads that have a hex bottom so that it fits. If it doesn't, you can 3d print your own.
void setup() {
///////PINS///////
pinMode(2, OUTPUT); //AIN1
pinMode(3, OUTPUT); //AIN2
pinMode(4, INPUT_PULLUP); //DPDT1
pinMode(5, INPUT_PULLUP); //DPDT2
pinMode(6, INPUT_PULLUP); //PUSHBUTTON
pinMode(7, OUTPUT); //RED LED
pinMode(8, OUTPUT); //GREEN LED
pinMode(LED_BUILTIN, OUTPUT); //Built-in LED for debugging. Turn off while in product
///////INITALIZE///////
//Write every output to LOW
digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(7, LOW);
digitalWrite(8, LOW);
}
void loop() { //Switch LEFT and RIGHT if wrong
if (digitalRead(4) == LOW && digitalRead(5) == HIGH) { //LEFT
if (digitalRead(6) == LOW) {
digitalWrite(2, HIGH);
digitalWrite(3, LOW);
while (digitalRead(6) == LOW) {
if (digitalRead(6) == LOW) {
digitalWrite(8, LOW);
}
for (int i = 0; i < 10; i++) {
if (digitalRead(6) == LOW) {
delay(25);
}
}
if (digitalRead(6) == LOW) {
digitalWrite(8, HIGH);
}
for (int i = 0; i < 10; i++) {
if (digitalRead(6) == LOW) {
delay(25);
}
}
}
} else if (digitalRead(6) == HIGH) {
digitalWrite(8, HIGH);
digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(7, LOW);
}
} else if (digitalRead(4) == HIGH && digitalRead(5) == LOW) { //RIGHT
if (digitalRead(6) == LOW) {
digitalWrite(3, HIGH);
digitalWrite(2, LOW);
while (digitalRead(6) == LOW) {
if (digitalRead(6) == LOW) {
digitalWrite(7, LOW);
}
for (int i = 0; i < 10; i++) {
if (digitalRead(6) == LOW) {
delay(25);
}
}
if (digitalRead(6) == LOW) {
digitalWrite(7, HIGH);
}
for (int i = 0; i < 10; i++) {
if (digitalRead(6) == LOW) {
delay(25);
}
}
}
} else if (digitalRead(6) == HIGH) {
digitalWrite(7, HIGH);
digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(8, LOW);
}
}
}
