What is this project about?

The Mini 560 is one of the most popular compact DC-DC Buck converter

modules in the maker community. It delivers a fixed 5V output with

up to 3A peak current in an ultra-small 17x11mm footprint, making it

perfect for powering microcontrollers, sensors, and IoT devices.

Why did I make it?

I needed a reliable, low-cost 5V power module for my IoT and embedded

projects. I reverse-engineered the original Mini 560 module and

optimized the Gerber files for PCBWay standard 2-layer process.

How does it work?

The JW6058A is a high-efficiency synchronous Buck controller switching

at ~500 kHz, regulating the output to a fixed 5V from a wide input

range (4.5V to 23V). Clean output with ripple below 30mV, suitable

for sensitive microcontroller applications.

Files included

- Gerber files (PCBWay 2-layer optimized)

- Pick & Place / Centroid file (.csv)

- 3D model (.step)

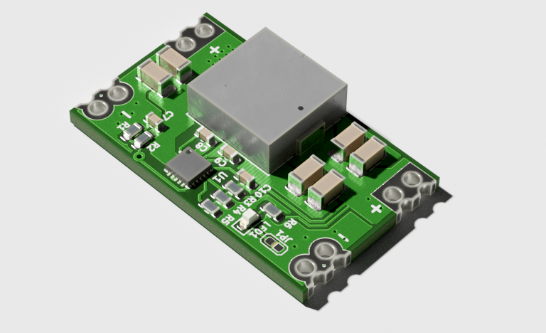

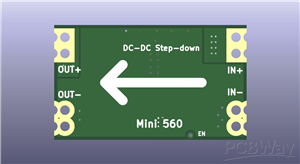

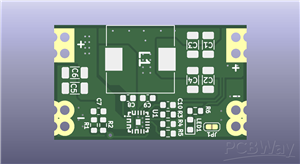

- 3D render

Applications

- ESP32 / Arduino power supply

- Li-Ion / LiPo battery regulation

- IoT sensor nodes

- Robotics and embedded systems
