Description
MagicPaper v1.1 ( Supports E-Paper in multiple sizes, based on ESP32-s3 )

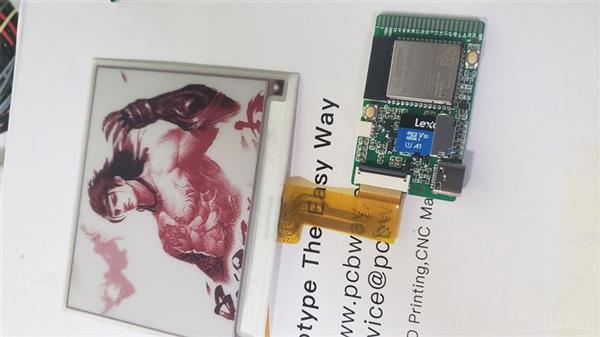

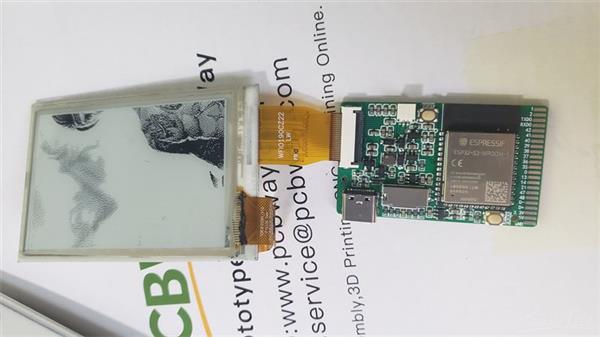

Supports E-Paper in multiple sizes, based on ESP32-s3，It can be used to make calendars, weather forecasts, eBooks, etc.

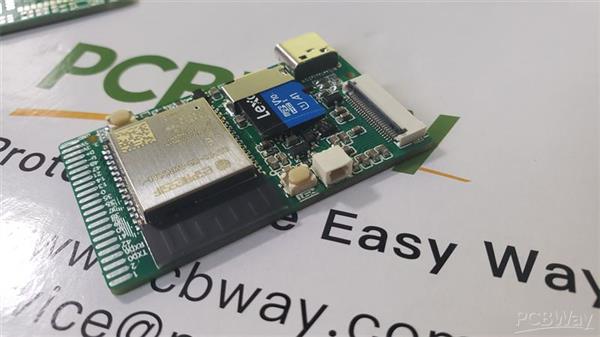

In the modern electronic field, more and more projects require a small yet powerful circuit board. Today, I would like to introduce a stunning PCB design, which is an only 50x30mm circuit board that supports microSD card, lithium battery charging, USB downloading, low power consumption, and includes related pin-outs for easy connectivity with other modules
https://hackaday.io/project/191055-magicpaper/
0621
- update v1.1
Hardware:
- MCU: ESP32-S3
- microSD
- battery charger
- USB Type-C
- WiFi
- BLE
- Dimensions – 50x30 mm
- Expansion:GPIOs, I2C, UART, SPI, 3.3V and GND
- Power Supply
5V via USB Type-C port
Li-ion battery
Code
Loader_esp32wf.zip

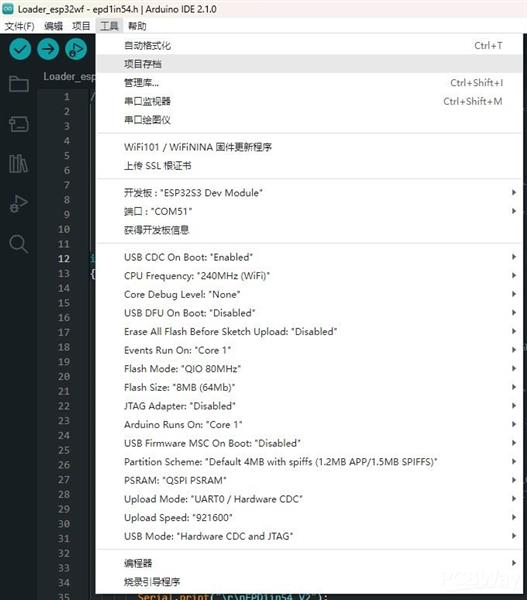

Arduino config.jpg

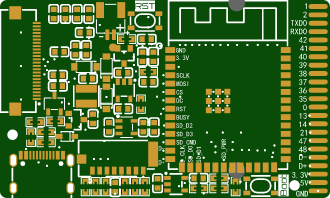

Schematic and Layout
sch_V1.0
sch_V1.1
May 29,2023
1,353 views
MagicPaper v1.1 ( Supports E-Paper in multiple sizes, based on ESP32-s3 )
2 Layers PCB 30 x 50 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Supports E-Paper in multiple sizes, based on ESP32-s3，It can be used to make calendars, weather forecasts, eBooks, etc.
