Miguel Angel Herrera
COLOMBIA • + Follow
Edit Project
Description

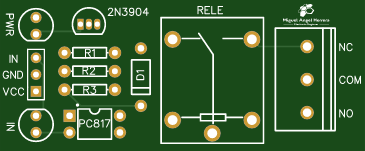

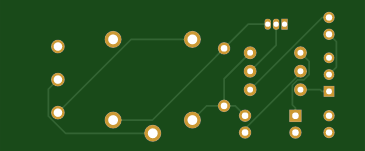

MODULO RELE
Módulo de relé de 1 canal, con el aislamiento fotoeléctrico
El módulo puede activarse con un valor alto de disparo
Con LED de energizado e indicador de acción del relé
El voltaje de funcionamiento del módulo 12Voltios
El módulo utiliza relé de calidad, carga máxima: CA 250V/10A, DC 30V/10A
Utilizar diodo freewheeling (volante) en paralelo con cargas inductivas para evitar sobrevoltajes.
nterfaz del módulo:
V+: alimentación positiva (VCC) (12V)
G : fuente de alimentación negativo(GND)
IN: Terminal de activacion, corriente de excitación debe ser superior a 4 mA
COM: Control de bucle de cable a tierra
GND: Tierra
Componentes
- 1 Rele Relevo Songle Srd-12vdc-sl-c Pcb 12v 5 Pines 10a
- 2 Diodos Led
- 1 Diodo 1N4007
- 1 Transistor 2N2222A
- 3 Resistencias de 1K
- 1 Conector Macho de 3 Posiciones
- 1 Conector Hembra de 3 Posiciones
- 1 Optoacoplador PC817
Aug 25,2021
644 views
MODULO RELE
Modulo rele
644
0
0
Published: Aug 25,2021
Download Gerber file 19
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
*PCBWay community is a shared platform and we are not responsible for any design issues.
Copy this HTML into your page to embed a link to order this shared project
Copy
Under the
Attribution-ShareAlike (CC BY-SA)
License.
