MAX-SSB_Front_Panel_NANO

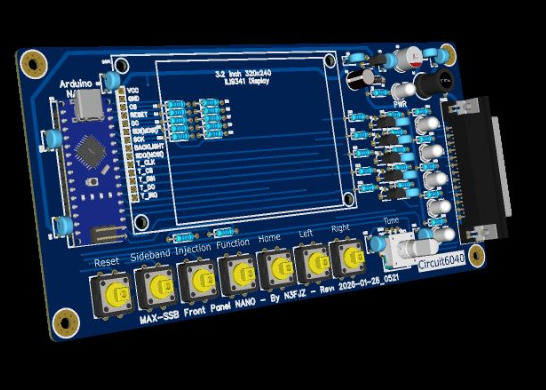

The MAX-SSB-Front-Panel_NANO (module 111) contains the Arduino NANO microcontroller, display, and user I/O. The microcontroller software (MAX-SSB-Front-Panel-NANO) allows you to specify or change your SSB crystal filter's center frequency (i.e. IF frequency) from the front panel interactively and in real-time via configuration screens without the need to edit and recompile the source code. It also allows immediate and in real-time selection of USB or LSB, high-side or low-side L.O. injection, apply a correction factor to the Si5351's main oscillator crystal (also interactively and in real-time) to bring your frequency display dead-on. Once configured, all settings can be saved to non-volatile memory via the user interface to preserve these configuration setting between power-ups.
