Description

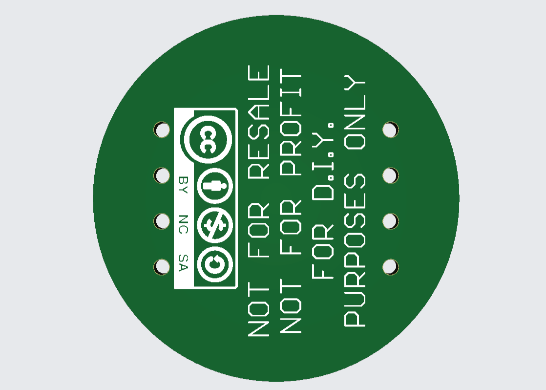

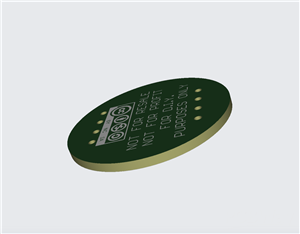

Jensen Style PC Mount Transformer Isolation Spacer

Sometimes you need a spacer for a transformer to isolate it from your PCB. FR4 PCB material is a great option! I'd order these as thin as possible with economic standard options available (0.8mm?)

Attached a .dxf file as well of the same object for other manufacturing options (laser cutting, etc)

Schematic and Layout

DXF file of the same item (in inches)

Jensen PC Transformer Spacer (DXF Export).dxf

Download Gerbers

Jan 27,2026

400 views

Jensen Style PC Mount Transformer Isolation Spacer

Sometimes you need to isolate a Jensen 8-pin PC mount transformer (JE-110K, CAPI 2622, Cinemag, etc etc)
