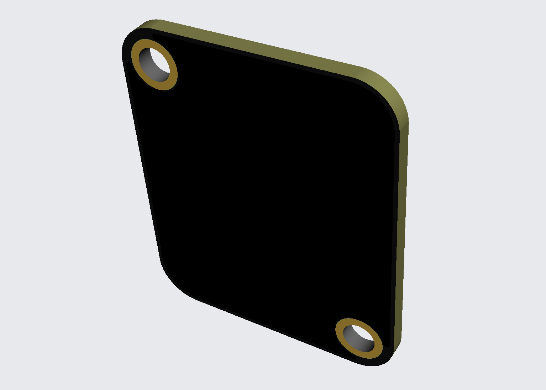

Screenshot 2025-03-11 at 12.45.19 AM.png

Tools, APP Software Used etc.

Cadsoft Eagle

Description

Neutrik D Series Panel Mount Jack Hole Blank Cover

NOT FOR COMMERCIAL PURPOSES / NOT FOR RESALE / NOT FOR PROFIT.

Note: the "WayWayWay" text on the bottom screenprint layer is for specifying PCBWay's product number label on the PCB so it doesn't get printed on the front of the dummy cover.

Little blanking / dummy covers to block off D Series (and equivalent) jack holes (XLR, TRS, etc etc). Laid out exactly to Neutrik datasheet specs not unlike DBA-BL. Very cheap to make many of these with FR4 PCB material in whatever colorway you'd like, but I was just going to make them in black.

There is a copper pour / ground plane on both the top and bottom layers of the PCB for enclosure shielding.

Mar 11,2025

216 views

Neutrik D Series Panel Mount Jack Hole Blank Cover

Little blank / dummy covers to block off D Series (and equivalent) jack holes. Laid out to Neutrik datasheet specs not unlike DBA-BL.
