Description

IR & RF Hub

Some links are currently unavailable as this project will be featured in an upcoming video releasing this week.

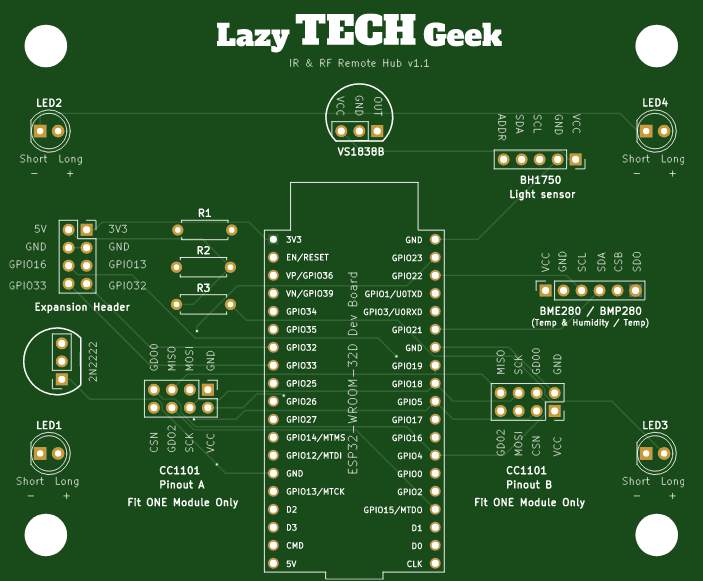

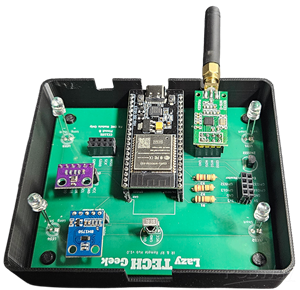

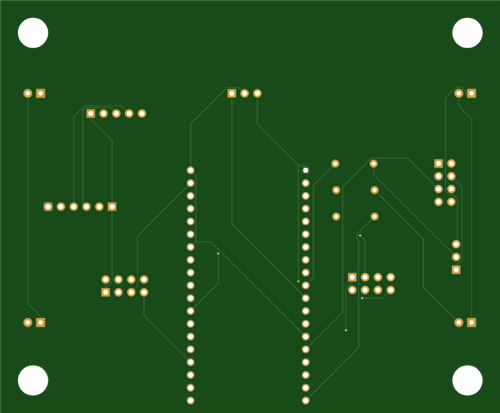

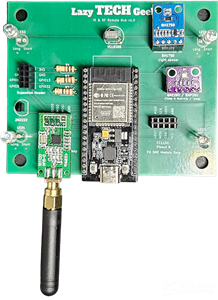

A carrier PCB for ESP32 that combines IR and RF controls with optional temperature, humidity, and light sensors - all in one.

Items required:

- Carrier PCB

- ESP32 Dev Board x1 (38-pin, requires both 3.3V and 5V pins)

- **CC1101 433MHz RF Module (Choose One)

- Green PCB Version (Pinout A)

- Blue PCB Version (Pinout B)

- 2N2222 NPN Transistor x1

- 22Ω Resistors x2

- 1kΩ Resistor x1

- Resistor Assortment Kit

- IR Transmitter LEDs x4 (5mm, 940nm)

- VS1838B IR Receiver x1

- IR LED & Receiver Kit

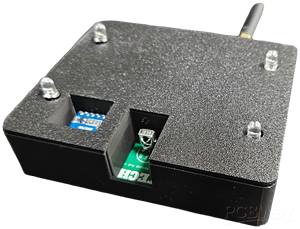

3D printer to print the enclosure

🖨️ 3D Print Files

- IR RF Hub Enclosure Base

- IR RF Hub Enclosure Led

- IR LED Guide

- IR Receiver Guide

Code

GitHub Repo

https://github.com/LazyTechGeek/HomeAssistant-RF

CAD-Custom parts and enclosures

3D printed files

3D printed files.zip

Download Gerbers Download BOM(Bill of materials)
