Description

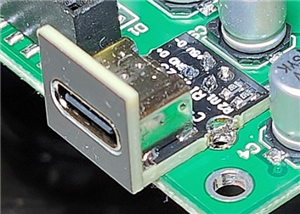

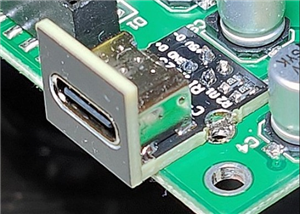

Front panel for C-Portify
Front panel PCB for the C-Portify project. See more at github https://github.com/1c3d1v3r/C-Portify
Use these PCB order parameters:
Thickness: 1.2 mm
Min hole size: No Drill
Solder mask: Black
Silkscreen: White
Surface finish: HASL with lead or lead free
Remove product No.: Specify a location
Jan 02,2026
29 views
Front panel for C-Portify
2 Layers PCB 11 x 12 mm FR-4, 1.2 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
29
0
2
Published: Jan 02,2026
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
