GT-USB-7016DG-Switch(品赞)
|
x 1 | |
|
|
RC0603FR-075K1LYAGEO
|
x 2 |
|
Altium DesignerAltium Designer
|

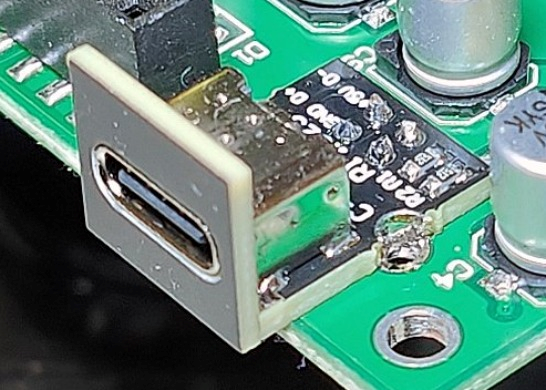

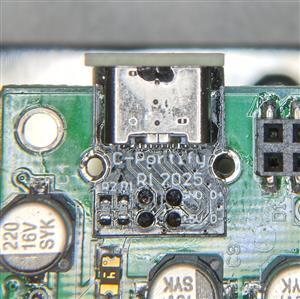

C-Portify USB-B to USB-C conversion kit
C-Portify is an USB-B to USB-C conversion kit. See more details at https://github.com/1c3d1v3r/C-Portify
The device consists of two PCBs. The main PCB in this project and a front cover from this project.
Use these PCB order parameters:
Thickness: 1.6 mm
Solder mask: Black
Silkscreen: White
Surface finish :
HASL with lead or lead free
Remove product No.: Specify a location
C-Portify USB-B to USB-C conversion kit
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
