Tools, APP Software Used etc.

	Fritzing Fritzing
	KiCad 9.0

Description

Flight Controller STM32F405 Syner-SOWA_V1.1_2026-04-20

Syner-SOWA F405 Flight controller

Beta Flight project tests

MCU STM32F405 RGT6
IMU ICM CM42688P
BARO DPS310XTSA1_C3232509
8 PWM, 4 UART ,3 ADC , OSD ,1 I2C
MAG , Depending the Firmware support
Support Betaflight

Code

Beta Flight file

betaflight_4.5.0_Synerduino SOWA STM32F405.zip

Schematic and Layout

schematic plan

SCH_SOWA F4 Flight Controller_2026-04-09.pdf

Download Gerbers Download BOM(Bill of materials)

May 22,2026

43 views

Flight Controller STM32F405 Syner-SOWA_V1.1_2026-04-20

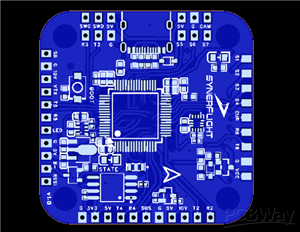

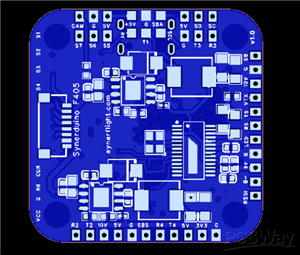

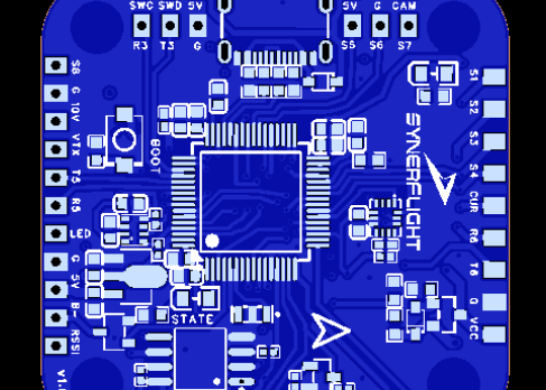

4 Layers PCB 40 x 40 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

Syner_SOWA STM32F405 FlightController Development

Published: May 22,2026

Standard PCB

Download Gerber file 1

BOM(Bill of materials)

Centroid file

Other files for Assembly

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
