Flight Controller_Synerduino_HY_H743_2026-04-20

Synerduino-Flight Controller H743

Supports Ardupilot , INAV ,Betaflight

MCU STM32H743VIT6
MPU ICM 42688-P
BARO BMP388
FLASH 4W25N01GVZEIG
OSD AT7456E

External feature

8 PWM
6 UART
3ADC
1I2c
1 SPI

Code

Ardupilot -Betaflight-INAV code

Synerduino HY-H743Firmware.zip

Schematic and Layout

schematic

SCH_Sch_H743_2026-04-09.pdf

Download Gerbers Download BOM(Bill of materials)

May 22,2026

440 views

Flight Controller_Synerduino_HY_H743_2026-04-20

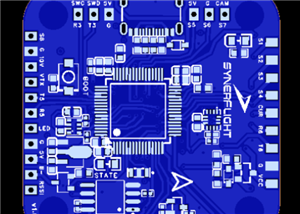

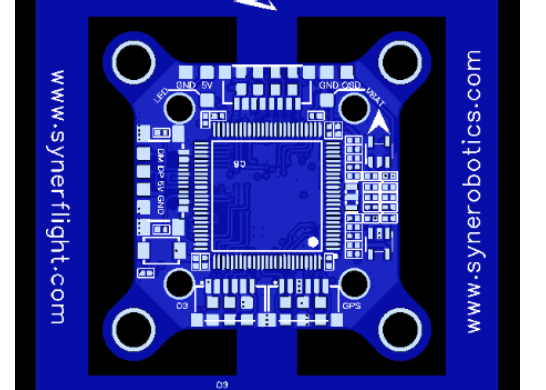

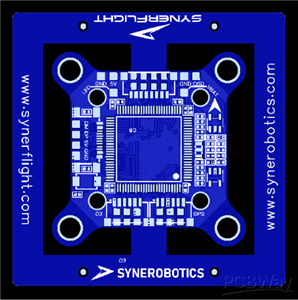

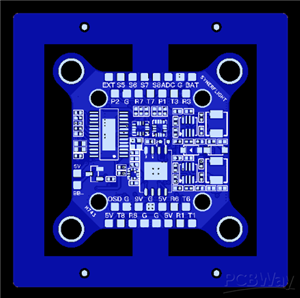

4 Layers PCB 52.8 x 52.8 mm FR-4, 1.6 mm, 1, HASL lead free, Blue Solder Mask, White silkscreen

H743 Flight Controller for Advance FPV Drone platform with extra mount space

440

Published: May 22,2026

Standard PCB

Download Gerber file 21

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Add to cart
