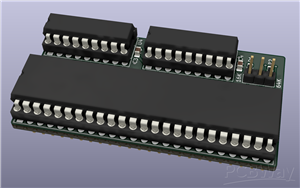

Fixteen V3 - Internal 64 kB RAM Expansion for the Commodore 16
Fixteen is an Open Hardware internal 64 kB RAM Expansion board for the Commodore 16.
For more information please visit the GitHub project page.
Dec 28,2023
279 views
Fixteen V3 - Internal 64 kB RAM Expansion for the Commodore 16
2 Layers PCB 62.7 x 33.5 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen
Internal 64 kB RAM Expansion for the Commodore 16
279
3
0
Published: Dec 28,2023
BOM(Bill of materials)
Centroid file
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
File Last Updated: 2023/12/28 (GMT+8)
