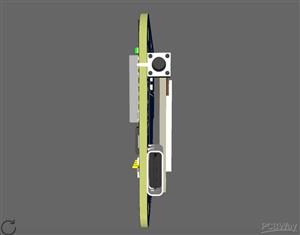

Eve Weather Apple HomeKit Temperature/Humidity/Pressure Sensor USB Type-C
"Fake" Elgato Eve Weather (2021) Apple HomeKit compatible temperature, pressure, humidity sensor using BME280 and OLED Screen
Pick and Place file for odering: https://github.com/HomeKidd/ESP8266-HomeKit-New-Eve-Weather/raw/main/images/PickAndPlace_HomeKid_Weather_v1.0.0_2021-04-08.csv
Features:
- Temperature Sensor accessory
- Humidity Sensor accessory
- Barometric Sensor accessory (requires Eve app)
- Characteristic for detecting your altitude (used for proper barometric calculation, requires Eve app)
- 12 hour Weather Forecast (requires Eve app)
- OLED screen with weather icons
- Switching Temperature Display Units between Celsius and Fahrenheit (requires Eve app)
- Downloadable User Manual (requires Eve app)
- Reset button
Part Links:
