ESP32 Bit Pirate Dock

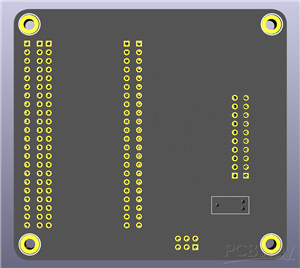

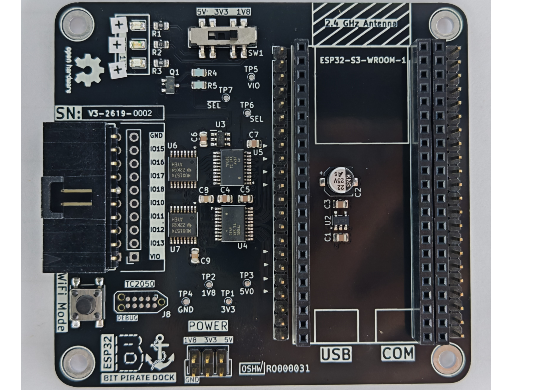

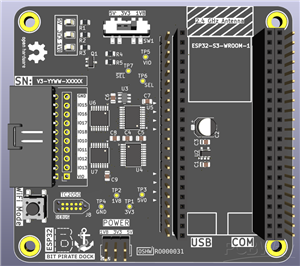

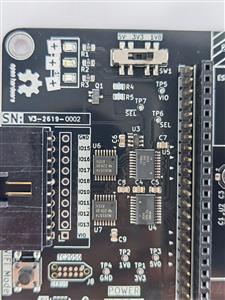

ESP32-Bit-Pirate-Dock is a hardware dock/carrier board for the ESP32-S3 DevKit. It provides level and voltage translation between the 3.3V ESP32-S3 and external peripherals, with support for 1.8V, 3.3V, and 5V operation.
The design is intended to work with original ESP32-S3-DevKitC-1, as well as the wider devkit clones from third party suppliers. The ESP32-S3 DevKit is required, and must be procured separately by the end user. These boards can be acquired through the official Espressif manufacturer and it's stores, or through other third-party websites. If not buying a genuine one, make sure the dimensions fit one of the header pins on the board.
You can find more details on the repository: github.com/AndreiVladescu/ESP32-Bit-Pirate-Dock
