Dragon 32 Issue 2 Reproduction

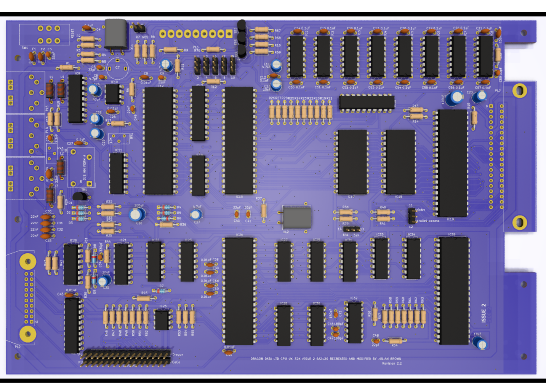

A mostly faithful recreation of the 1982 Dragon 32 Issue 2 computer - with a few quality of life improvements that make it really simple to upgrade to the full 64K, or use Tandy Color Computer ROMs to operate as a Color Computer (in a Dragon case with a Dragon keyboard). The parallel port includes a switch to complete compatibility with the rather useful DriveWire server software
Dragon 32 Issue 2 Reproduction
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
