Description
Double Din Retro Head Unit

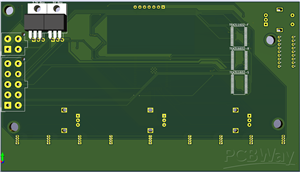

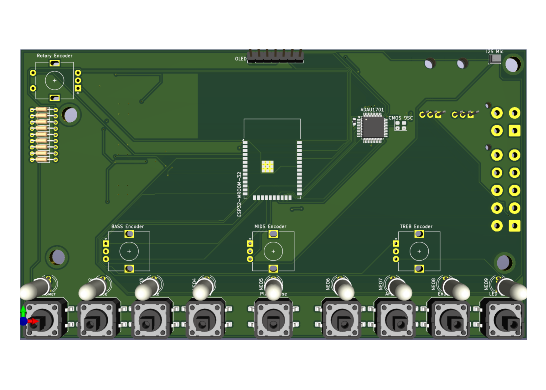

A pcb the size of a double din headunit that supports an esp32 and 3 tpa3116d2's for 50x4 and 100x1
Offers bass, mids and treble control with physical knobs
Has an mic to make calls with dedicated buttons for answering and declining
Has neo led backlight with a button to change color to match interior/exterior
Built in DSP
This is my first PCB design so I apologize for any mistakes, comment any concerns or issues, Thanks you.
Dec 24,2025
84 views
Double Din Retro Head Unit
A Retro style headunit with buttons and knobs that makes 50watts to 4 channels at 4 ohms and 100watts at 1 channel at 2 ohms, only runs bt.
84
0
0
Published: Dec 24,2025
