Atta Rehman
PAKISTAN • + Follow
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
ATX PC Power Suplly to 12v out for Automotive Amp

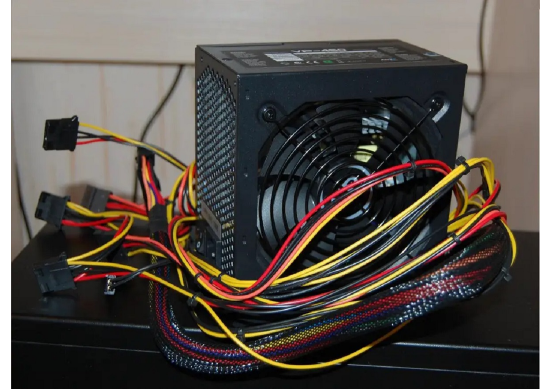

Automotive car amplifiers are a great way to get high power for a audio set up, especially for car subwoofers that you may wanna use in your home, A great way to give them power is through a PC power supply but that requires cutting the wires, sorting them out, opening up the psu to remove the unnecessary wires and more, this pcb allows you to plug in all the connectors and get out the power in some screw terminals as your amp requires.
May 06,2026
15 views
ATX PC Power Suplly to 12v out for Automotive Amp

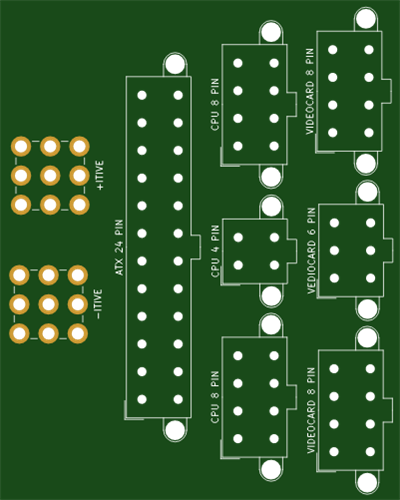

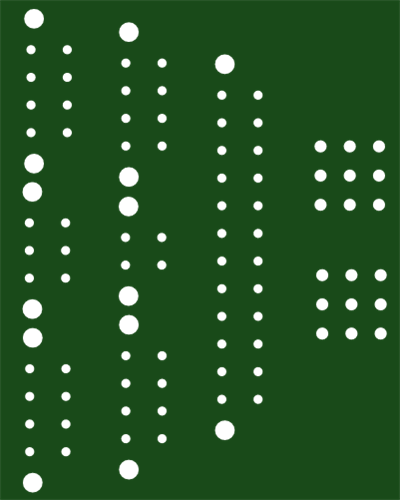

Pull 12v from a spare pc power supply for a home audio setup without chopping any wires.
15
0
0
Published: May 06,2026
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
