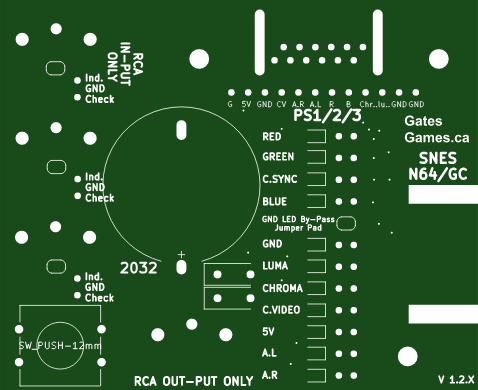

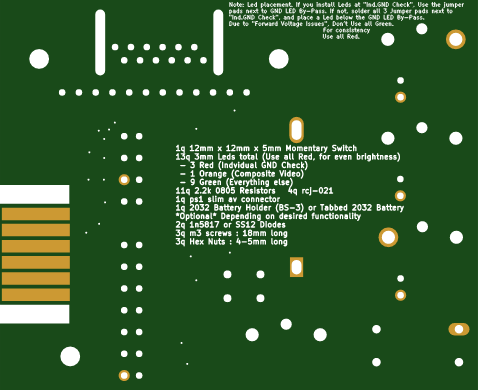

Continuity Tester RCA SNES PS1 AV Cable Tester
The goal is this can fit in a pocket, weigh less than 100grams. Regardless of where you are. At the bench, a flea market, or used store. You want to be able to verify if a AV cable works. This version will focus on RCA Phono cables, Nintendo SNES N64 NGC and PlayStation PS1 PS2 PS3 AV Cables.
Additional information is here on GitHub.
Thanks
Continuity Tester RCA SNES PS1 AV Cable Tester
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
