NES CIC (Optional if your using a top loader, required if your using a front loader) |
x 1 | |
|
|
60 pin (2x30) edge connector |
x 1 | |
|
|
.1uf Cermaic Capacitor |
x 1 |

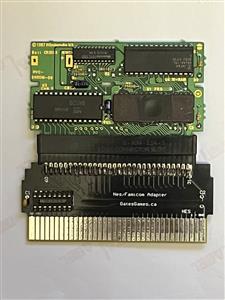

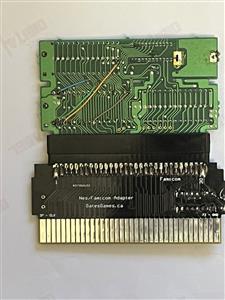

Famicom to NES Adapter

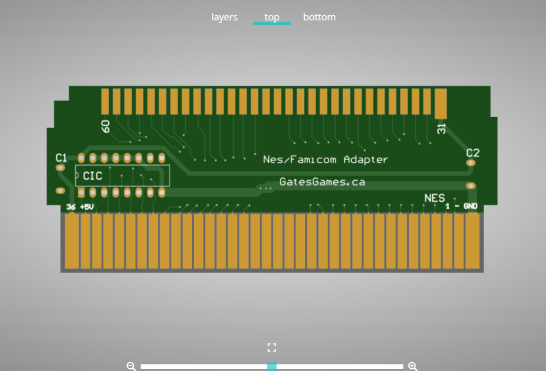

Famicom to NES Adapter will fit inside a NES cartridge shell. However, due to it's size you will may need to remove certain post. At the very least not try to put a screw in the center screw.
I own and use a top loader, so i've never tested the CIC feature. Tested working on my Top Loader. This is a diy project and you use it at your own risk. Any damage you do to your hardware or self is your responsibility. I offer no support for this project.
For the 60 pin edge connector, I did have to push in the pins to solder it to the board. As I use them to fix Famicoms. There maybe a better option out there.
The ceramic Capacitor is a .1uf
1.2mm Thickness
Edge Connector: ENIG and 30 degree Bevel
Surface Finish: ENIG
I'll update, if and when I find a front loader nes.
Famicom to NES Adapter
