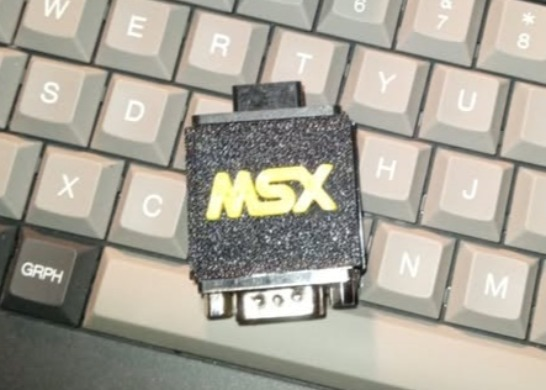

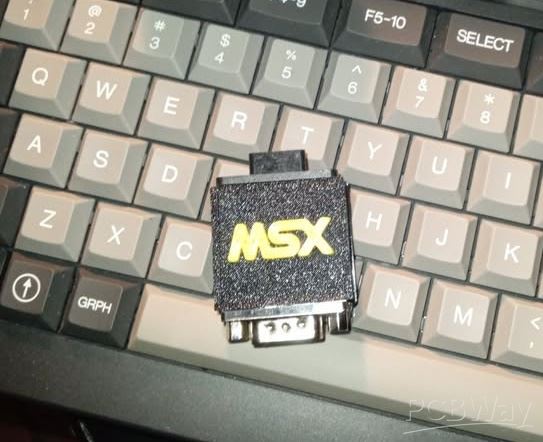

Commodore to MSX JOY ADAPTER 2 BUTTONS
Very simple but useful adapter that allows you to use the Commodore or MasterSystem PAD on MSX.
The Commodore must have two separate wired buttons, like the MasterSystem PAD!
Main component:
1 X MALE DB9
1 X FAMALE DB9
For 3D BOX, contact me!
ONLY FOR PERSONAL USE, NOT COMMERCIAL!
Jul 12,2025
583 views
Commodore to MSX JOY ADAPTER 2 BUTTONS
Commodore to MSX JOY ADAPTER 2 BUTTONS, redirect MSX standard port to Commodore.
