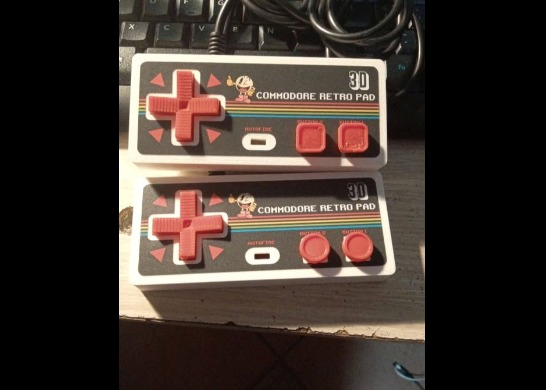

Commodore 64 NES LIKE PAD Dual Buttons+Autofire
U1=NE555 Only PHILIPS work into this cirtuit.
R1-R2=10K
C1-C2=100nF
INLINE CABLE PIN OUT 1 to 9 like original C64 Joy Port Schematic
Mini SWITCH
https://it.aliexpress.com/item/4001207529493.html
PUSH BUTTONS 6X6X5
https://it.aliexpress.com/item/1005007043876325.html

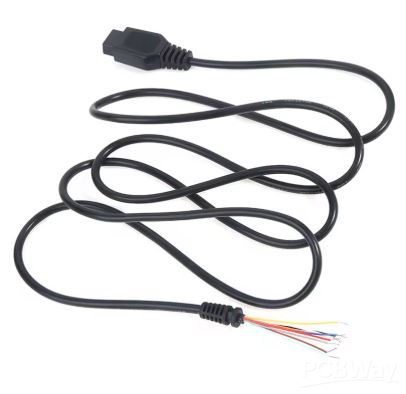

Joy Cable
https://it.aliexpress.com/item/1005007941540327.html
For 3D BOX
https://github.com/amigamess/Commodore_NES_Pad
ONLY FOR PERSONAL USE, NOT COMMERCIAL!
