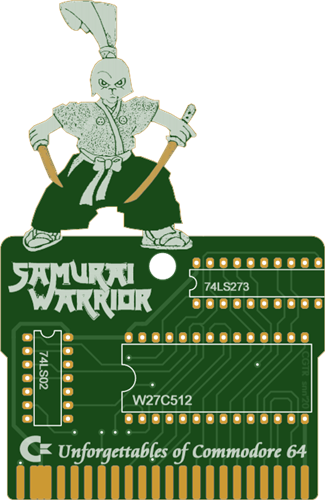

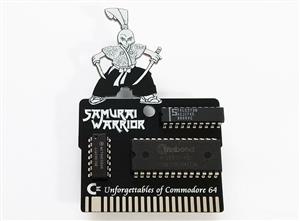

C64 Samurai Warrior: The Battles of Usagi Yojimbo Game Cartridge PCB




Hello,


This is a tested and working circuit board.




This PCB is prepared for the Commodore 64 Samurai Warrior: The Battles of Usagi Yojimbo Game Cartridge.


https://www.c64-wiki.de/wiki/Samurai_Warrior_-_The_Battles_of_Usagi_Yojimbo


https://en.wikipedia.org/wiki/Samurai_Warrior:_The_Battles_of_Usagi_Yojimbo




This C64 cartridge is based on C64 Magic Desk cartridge, modified for running a single autostarting game/program(.prg extension) on commodore 64. There is a 64KB eprom (27c512) on the cartridge.



There are different versions of this game for commodore 64. You can choose your favorite version and prepare your own eprom binary image using a special software. With this software you can prepare single autostarting file (without menu) eprom image .bin file. You can test the .BIN file with VICE emulator. Many tanks to Feandreu and zzarko. You can download the software from this link:


https://github.com/Feandreu/mdeskcrtgenfsp




This Magic-Desk Compatible Cartridge is based on msolajic's (Marko Solajic) "c64-magic-desk-512k" project. Many thanks to Marko Solajic.

https://github.com/msolajic/c64-magic-desk-512k




This cartridge can also be used as; generic 64KB Commodore 64 magic desk compatible cartridge.



In order to protect your electronical devices, always turn off your Commodore 64 before connecting or unconnecting any device.



Have fun


Thank you.



COMPONENTS:


27C512 DIP28 (W27C512)

74LS02 or 74HC02 DIP14

74LS273 or 74HC273 DIP20

DIP28 WIDE IC SOCKET



If your programmer have capability to test IC chips, like 74LS series, then you should not forget to test them before soldering, some chips may have defect. (TL866 Minipro Programmer is able to test some of logic IC)


Gerber files can be changed at any time. Before paying for the PCBs, be sure to update your orders!





This project only includes a specially designed PCB. No Commodore64 game or program will be shared.








Dec 11,2020
