VIRAL DNA

CANADA • + Follow Edit Project

Volodymyr Bagmet

UKRAINE
- 0
- 0
1


Components

MX66U2G45GXRI00

x 1

Description

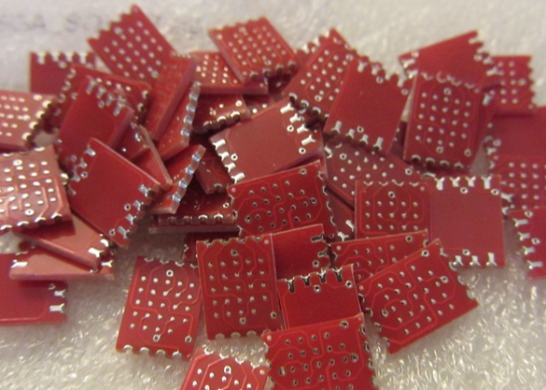

BGA24 to SOP8 Adapter

Upgrading the Game & Watch Storage

This project was created to maximize the available storage of the 35th Anniversary Edition Nintendo Game & Watch (Both the Mario & Zelda Editions).

These adapt a 24-Ball BGA (5x5 ball array) either of the flash chips listed below to a allow it be soldered on the 35th Anniversary Edition Nintendo Game & Watch's existing WSOP8 pads.

Once you have created a backup of the systems stock firmware, simply remove the existing MX25U8035F WSOP-8 Package and install this board, then install a compatible BGA chip:

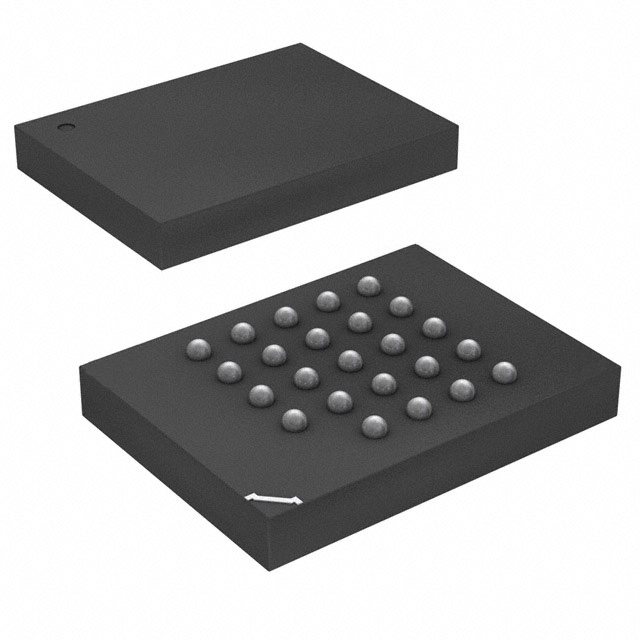

Macronix1Gbit (128MB) 1.8V*24-LBGA | MX66U1G45GXDI00

Macronix2Gbit (256MB)1.8V*24-LBGA | MX66U2G45GXRI00

Please use only the above listed chips. They have been tested and confirmed working.

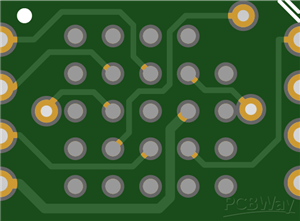

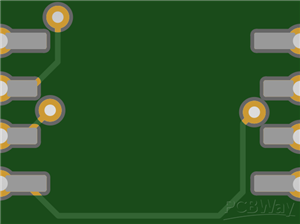

Schematic and Layout

GitHub Project

https://github.com/DNA64/bga24-to-sop8-adapter

Download Gerbers

Oct 27,2025

217 views

BGA24 to SOP8 Adapter

BGA24 to SOP8 Adapters for using larger 1Gbit (128MB) to 2Gbit (256MB) BGA24 SPI NOR flash chips on the New Nintendo Game & Watch.

217

1

0

Published: Oct 27,2025

Standard PCB

Download Gerber file 2

Purchase

Donation Received ($)

PCBWay Donate 10% cost To Author

File Last Updated: 2025/10/27 (GMT+8)

File update record

2025-10-2706:48:59

Gerber file is updated.

Only PCB

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Copyright Info

Attribution-ShareAlike (CC BY-SA) License

Under the Attribution-ShareAlike (CC BY-SA) License.
