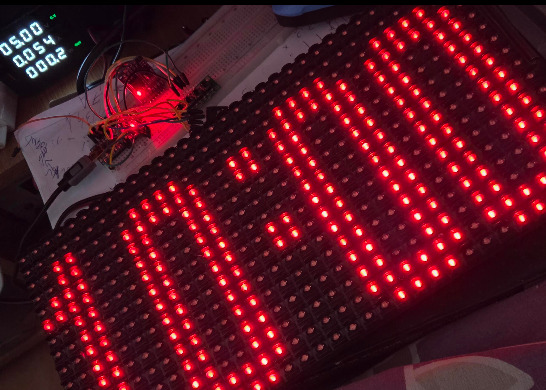

Adjusting RTC clock on P10 display

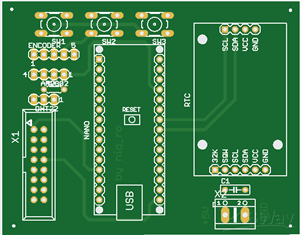

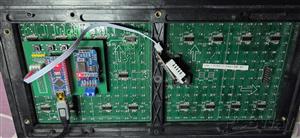

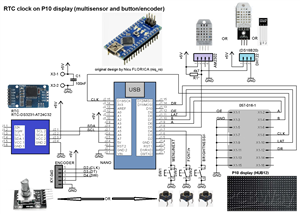

Actual design of adjusting RTC clock on P10 display used just: Arduino Nano, RTC module (DS3231 or DS1307) and 3 buttons:
- MENU/NEXT for adjust clock and data

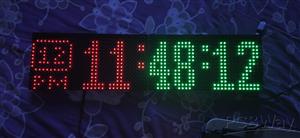

- FONT/+ for change normal to bold version of fonts/numbers
- BRIGHTNESS/- for enter in brightness adjusting mode (17 steps) using again + or - and MENU to exit in normal mode

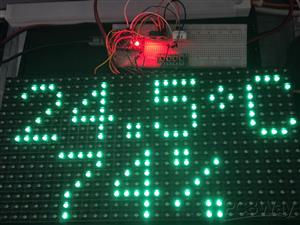

In the future I'll replace the buttons with encoder and also I'll add the sensors (DHT22/AM2302, DS18B20, etc)
Now used https://github.com/freetronics/DMD2 library and all sketches are stored at https://github.com/tehniq3/DMD2-P10-display
Actual articles:
https://nicuflorica.blogspot.com/2025/11/ceas-pe-afisaj-p10-cu-32x16-leduri-2.html
https://nicuflorica.blogspot.com/2025/11/ceas-cu-reglaj-pe-afisaj-p10-de-32x16.html
https://nicuflorica.blogspot.com/2025/11/ceas-cu-reglaj-pe-afisaj-p10-de-32x16_2.html
https://nicuflorica.blogspot.com/2025/11/ceas-cu-reglaj-pe-afisaj-p10-de-32x16_10.html
https://nicuflorica.blogspot.com/2025/11/ceas-cu-reglaj-si-termometruhigrometru.html
My previous articles:
https://nicuflorica.blogspot.com/2020/01/ceas-pe-afisaj-p10-cu-32x16-leduri.html
https://nicuflorica.blogspot.com/2020/01/ceas-cu-data-pe-afisaj-p10-cu-32x16.html
https://nicuflorica.blogspot.com/2020/01/ceas-cu-reglaj-pe-afisaj-p10-de-32x16.html
