Morphing Clock on monochrome P10 (HUB12) display
This universal PCB can be used for a lot of projects using monochrome (single color) P10 display controlled by Wemos D1 and using also DMDESP library,
For Morphing Clocks:
- https://nicuflorica.blogspot.com/2026/04/ceas-ntp-cu-animatii-pe-afisaj-led.html
- https://nicuflorica.blogspot.com/2026/04/ceas-ntp-cu-animatii-pe-afisaj-led_29.html
- https://nicuflorica.blogspot.com/2026/05/ceas-ntp-cu-animatii-si-date-meteo-pe_11.html
- https://nicuflorica.blogspot.com/2026/05/ceas-ntp-cu-animatii-si-date-meteo-pe.html
aslo other NTP Clocks:

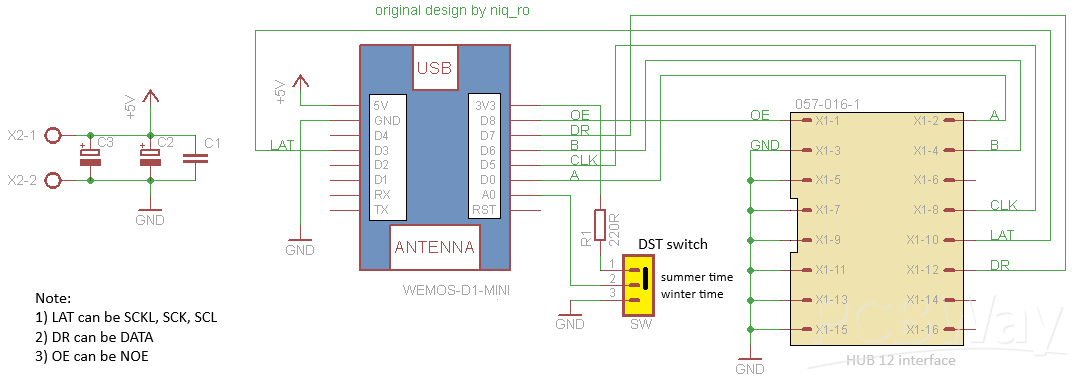

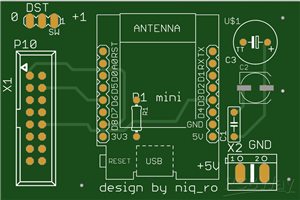

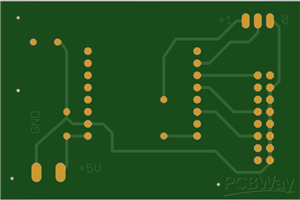

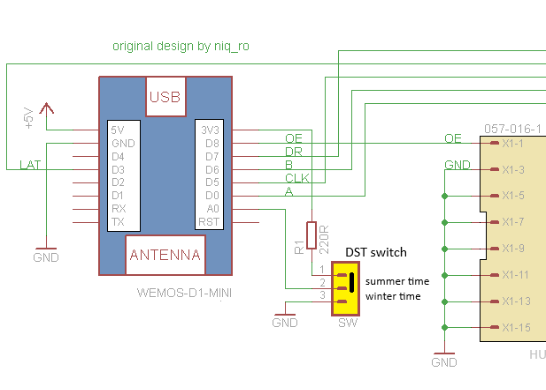

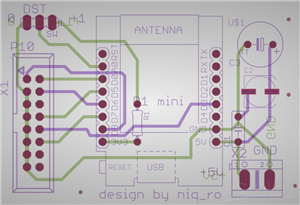

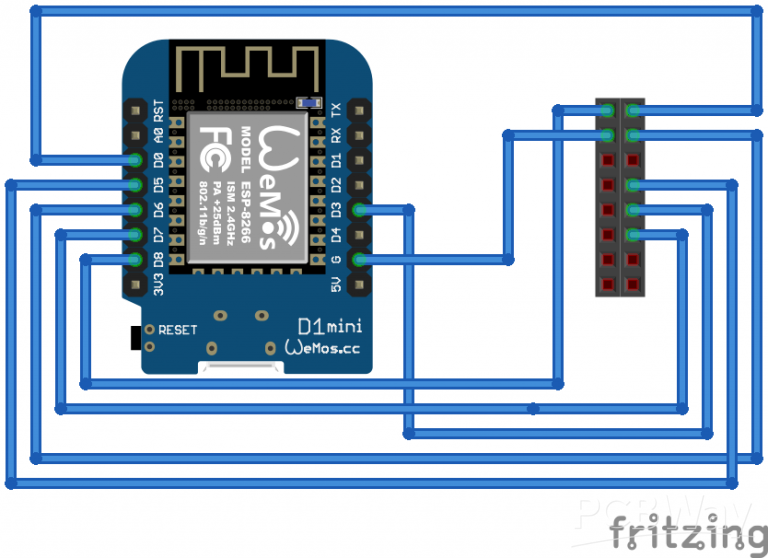

Schematic and Layout
gif
https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiMSoSioFfpsd7iw6on68N5wMv3ODtJKn0OPsZL-yZcS3GWyNq-3ErKFpRgf9r65_VC7PvCsU74zuLuyTsTUeWEIls7DW_xyS45bypPCe1G9s8VL9uq5l6hIQHI3A7DRymDmPq15r_C8s2i2LGj7-ixgTMv3Hh0A7D9js88ihBncwMD6upDG8xHkvUaynfZ/s426/uv.gif
May 12,2026
29 views
Morphing Clock on monochrome P10 (HUB12) display
Universal PCB for Wemos D1 board with monochrome (sigle color) P10 display with HUBHUB12 interface and using DMDESP library
