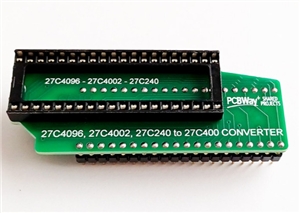

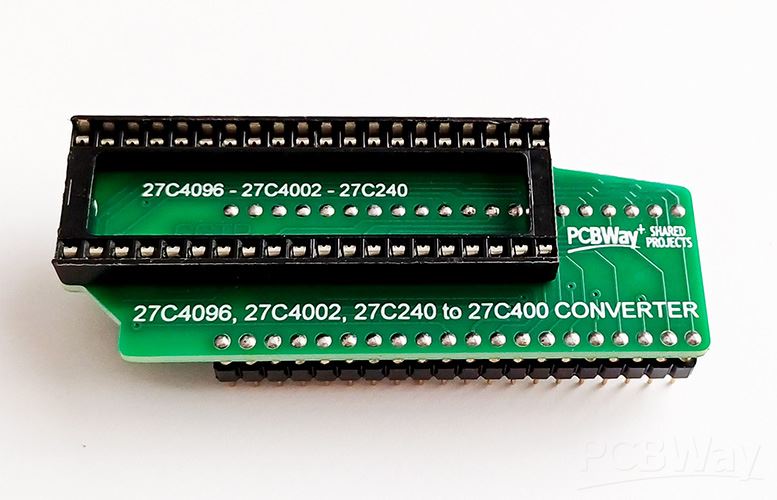

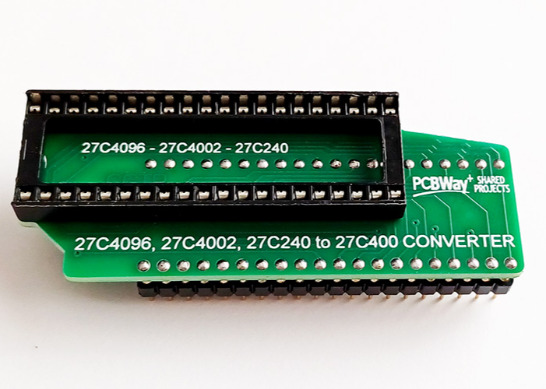

27C4096, 27C4002, 27C240 TO 27C400 CONVERTER FOR MAKING AMIGA ROMS.

Use 27C4096, 27C4002, 27C240 as Amiga kickstart or Amiga DiagROM

This is a tested and working circuit.

This adapter has been tested on Commodore Amiga 500 (REV.6) and Amiga 600

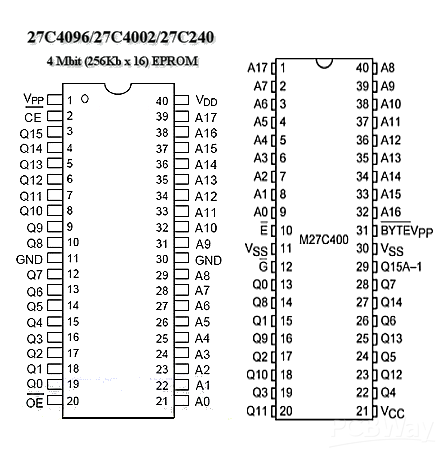

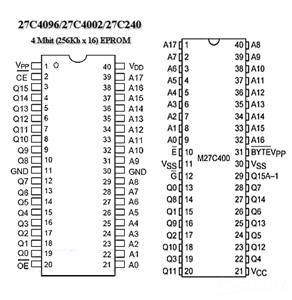

This adapter converts 27C4096, 27C4002, 27C240 (DIP40) EPROMs to 27C400 EPROM (DIP40).

With this adapter, you can make an Amiga Diagnostic ROM (DIAGROM) with using a 27C4096 or 27C4002 or 27C240 EPROMs.

This adapter works with Amiga 500 REV.6 , REV.8 , Amiga 500 Plus, Amiga 600. (it will not work on A500 REV.5 or REV.3 motherboards!)

When using this adapter on Amiga 500Plus and Amiga 600, pin1 and pin42 of the ROM socket must be left empty!

Most Amiga 16 bit computers' ROMs are compatible with 27C400 EPROMs (except A500 rev.3 and rev.5 motherboards). You may not have a 27C400 or its price may be too high, but 27C4096 and 27C4002 may be easier to find, or you may want to evaluate your 27C4096, 27C4002 EPROMs as Amiga ROMs. Then this simple adapter will be useful for you.

Ps. For Amiga DIAGROM you can find Serial Port and Parallel Port dongles in these links:

SERIAL PORT DONGLE

PARALLEL PORT DONGLE

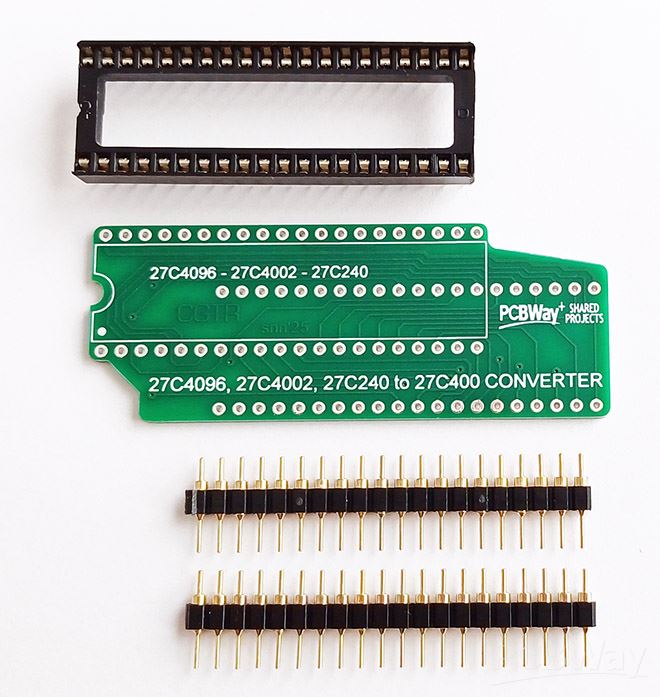

COMPONENTS:

27C4096 or 27C4002 or 27C240 EPROM (DIP40) (Requires Programming)

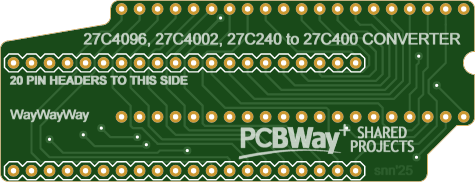

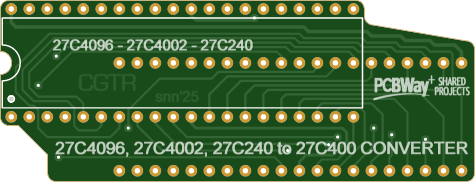

This PCB

40 pin WIDE DIP IC SOCKET 2.54 Pitch

2 PCS 20 pin ROUND MALE 2.54 Pitch PIN HEADERS

In order to protect your electronical devices, always turn off your Amiga before connecting or disconnecting the cables or any other device.

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.

c64istanbul
