Components
|
|
MICROCHIP, PIC16F877A-I/L F/AMicrochip Technology
|
x 1 |
Tools, APP Software Used etc.
|
Proteus 8 |
|
|
Visual Studio CodeMicrosofe
|
|
|
CCS C CompilerCCS
|
Description

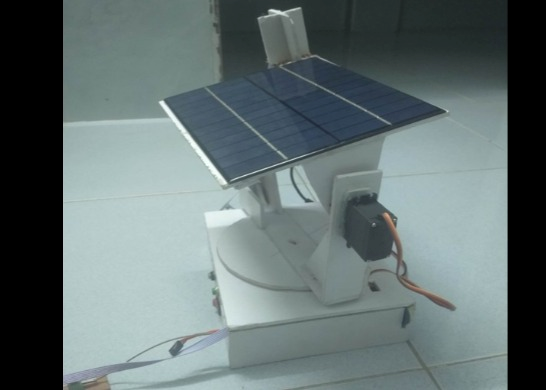

solar panel system

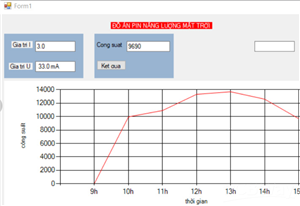

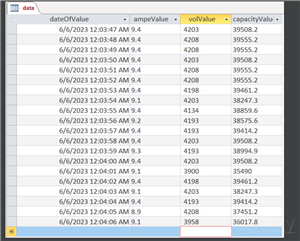

The solar panel system rotates according to the sun, collects data and sends it to the computer, including the power received with the current intensity and voltage, then sends all the collected data to the access software, from which it is possible to know the amount of electricity received each day, month or year. This helps people control the amount of electricity consumed to meet the necessary tasks.
Code
code
code.txt

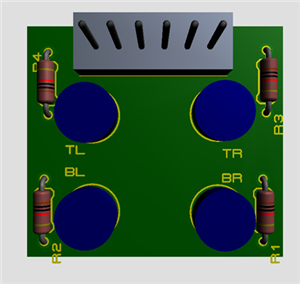

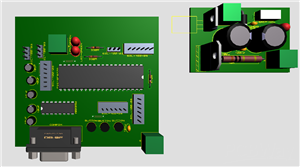

Schematic and Layout
layout
layout.pdf
Sep 11,2025
251 views
solar panel system
Solar panel system rotates to collect data and sends it to the computer
251
1
1
Published: Sep 11,2025
Rigid-Flex PCB
Download Gerber file 6
BOM(Bill of materials)
*Due to unresolved design issues with this PCB, orders cannot be placed at this time. We appreciate your understanding.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
