radio-86rk-sdcard 2.0

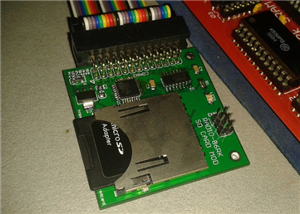

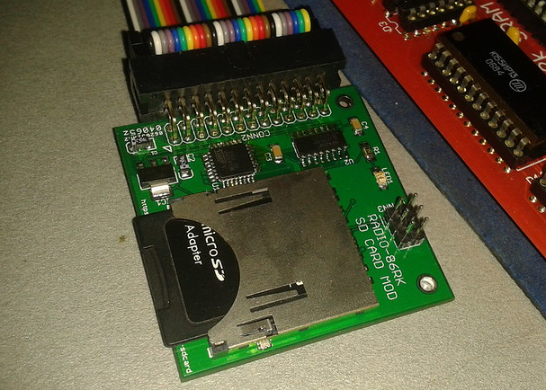

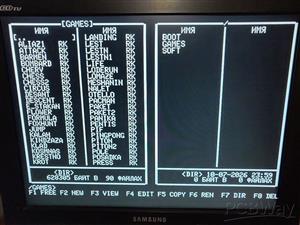

SD-CARD Adapter for Radio-86RK 2.0
This repository is a fork and modification of andykarpov/radio-86rk-sdcard, which itself is based on the SD-CARD adapter project by Vinxru.

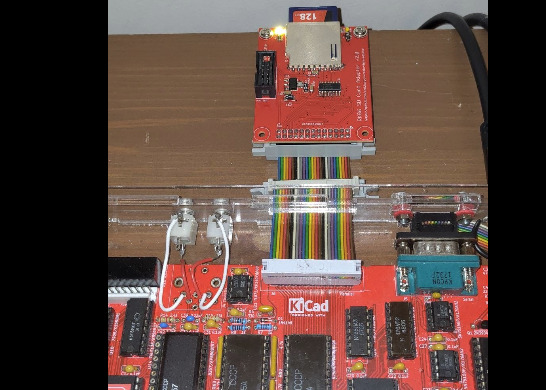

The adapter is intended for Radio-86RK_SRAM or the Radio-86RK by Sergey Kiselev.
I made small modifications to the Andy Karpov`s project and uploaded it as a fork: https://github.com/explit28/radio-86rk-sdcard

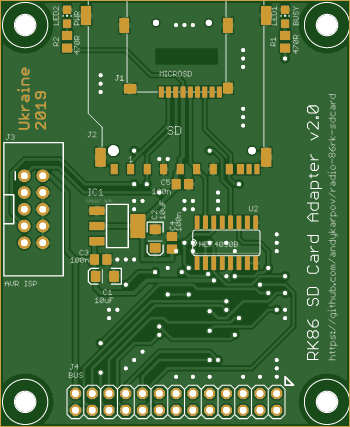

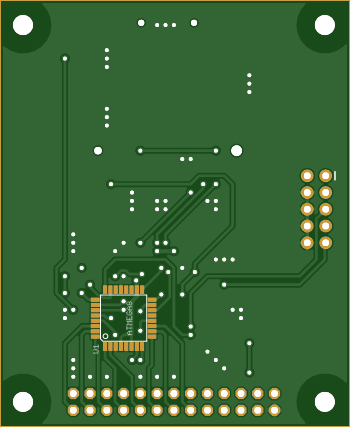

Schematic and PCB changes by andykarpov
- Added LDO Regulator LM1117 3v3
- Instead of resistive divisors, HEF4050BT buffer is used
- added 26-pin IDC connector for connection module to be paired with Radio-86RC_SRAM
- Added 6-pin connector for the programmer
- Instead of Atmega8L used MK Atmega328P
radio-86rk-sdcard 2.0
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
