iCE40HX1K-EVB – Open Source FPGA Development Board

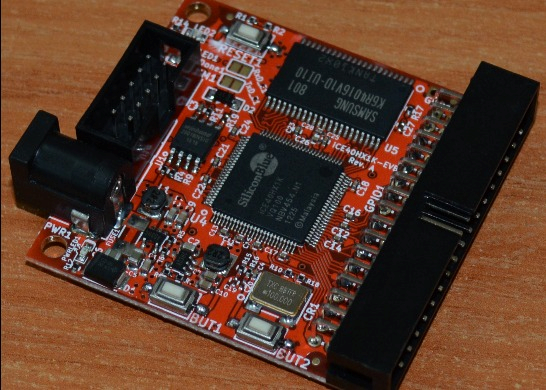

The iCE40HX1K-EVB is a fully open-source FPGA development board created in KiCad by Olimex.
It features the Lattice iCE40HX1K FPGA, offering an affordable and beginner-friendly platform for experimenting with digital logic, learning FPGA design, and building embedded systems.
All hardware design files (schematics, PCB, BOM) are open and reproducible, making it an ideal choice for students, makers, and researchers who want to explore open-source FPGA tools like Yosys, nextpnr, and Icestorm.
Sep 05,2025
390 views
iCE40HX1K-EVB – Open Source FPGA Development Board
Open-source FPGA board with Lattice iCE40HX1K, ideal for learning digital logic and FPGA design.
390
0
1
Published: Sep 05,2025
Standard PCB
Download Gerber file 7
*Due to unresolved design issues with this PCB, orders cannot be placed at this time. We appreciate your understanding.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
