Description
cweep (keyboard)
A compact, 34 key, solar powered, reversible, split keyboard.
Code
https://github.com/cjshearer/cweep
Schematic and Layout
https://github.com/cjshearer/cweep
Sep 22,2025
243 views
cweep (keyboard)

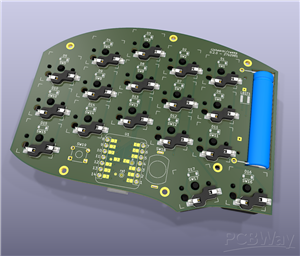

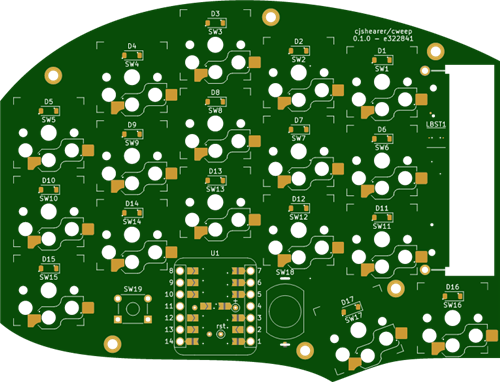

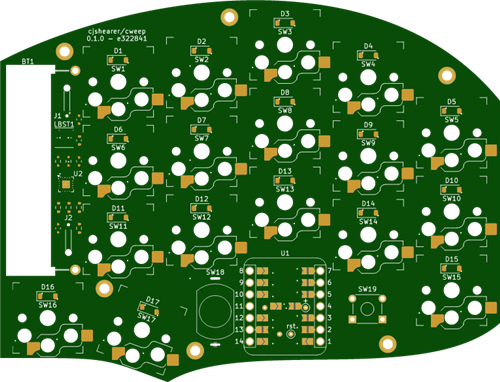

2 Layers PCB 82.579 x 108.1 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen

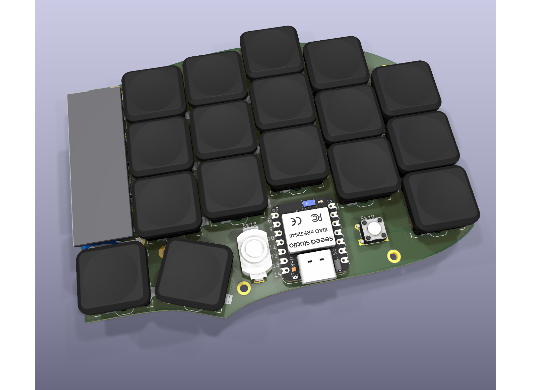

A compact, 34 key, reversible, split keyboard; inspired by the Ferris Sweep and powered by the sun.
243
1
0
Published: Sep 22,2025
Standard PCB
Download Gerber file 1
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
